Blue Diamond Standard Duty

light duty pallet forks winnipeg saskatchewan blue diamond dealership pallet fork walk through attachment for easy access to skid steer

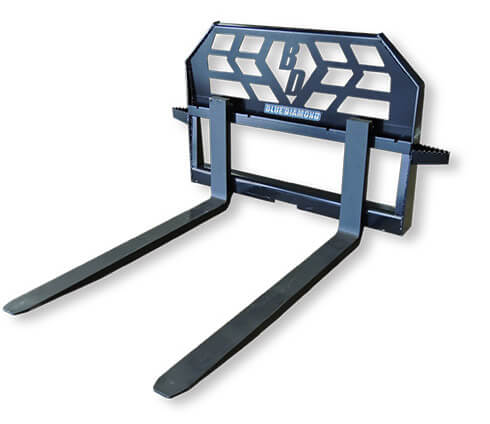

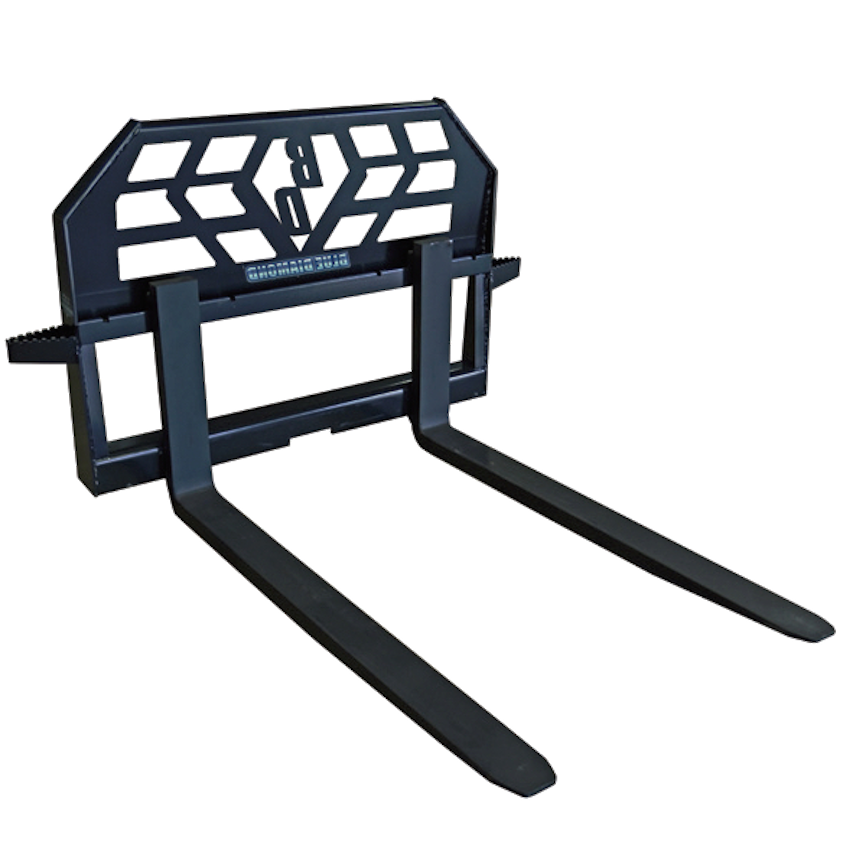

Our  Blue Diamond® Skid Steer Pallet Forks offer great visibility on a heavy duty frame. The 48” tines are 1.5″ thick and are fully adjustable. This is our most popular style forks for general use. Frames are powder-coated for durable finish and serial numbered with lifting capacities in both pounds and kilograms to meet regulations in many counties. Available with or without the side steps.

Categories: , ,
PART NUMBER MODEL TINE SIZE LIFT CAPACITY WEIGHT
314006 Pallet Fork Std, W/Steps 42” X 1 1/4” 3,700 LBS 311 lbs
314007 Pallet Fork Std 42” X 1 1/4” 3,700 LBS 318 lbs
314004 Pallet Fork, Std, W/Steps 48” X 1 1/2” 4,000 LBS 375 lbs
314070 Pallet Fork Std 60” X 1 1/2” 4,000 LBS 413 lbs
314075 Pallet Fork Std 72” X 1 3/4” 4,000 LBS 493 lbs
  • Rail mount tines
  • Easy to adjust
  • 4,000 lb. capacity
  • Non-floating tines
  • 48″ x 4″ x 1 1/2″ tines
