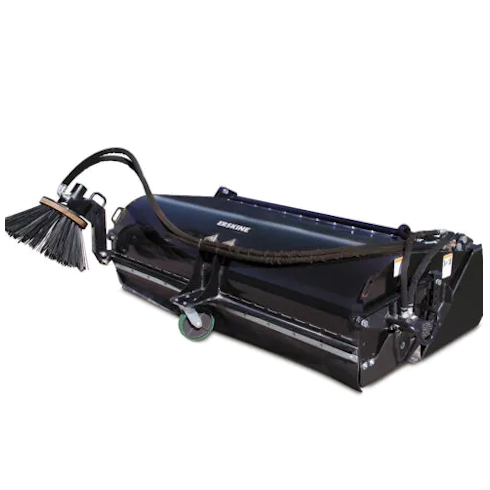

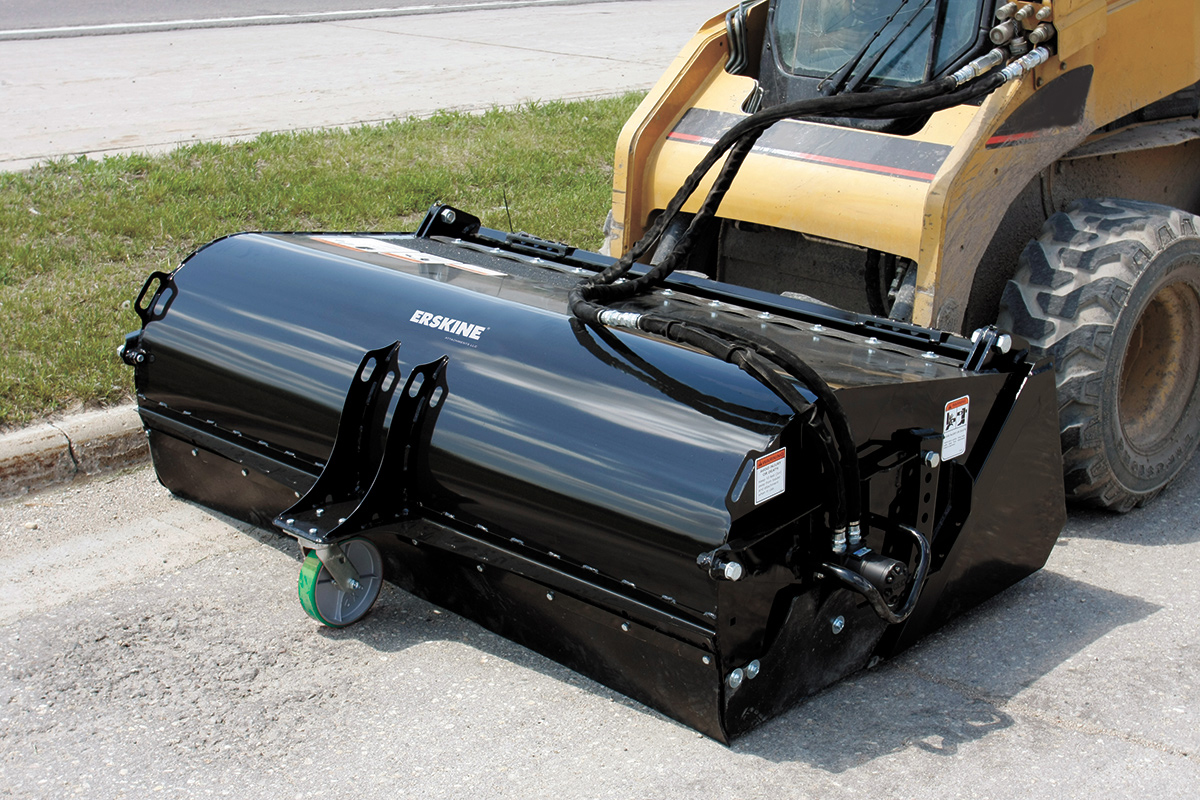

Erskine Pickup Broom

blue diamond pick up broom skid steer attachment Front-Stanely-LaBounty-insite-image-300x300.jpg

Sweep dirt and debris or scrape mud going forward or in reverse. Ideal for construction, industrial or municipal jobs, the Pick-Up Broom is easy to attach and simple to operate. The reversible cutting edge helps cut loose caked-on mud, while the sweeper’s poly bristles deposit dirt and debris in the container, which can be dumped when full.

Categories: ,
Model 60” w/poly 60” w/poly/steel 72” w/poly 72” w/poly/steel 84” w/poly 84” w/poly/steel
Part Number 901207 901208 901062 901063 901065 901066
Weight 740 lb. 740 lb. 850 lb. 850 lb. 940 lb. 940 lb.
Width 60″ 60″ 72” 72” 84” 84”
Overall Height 25.25” 25.25” 25.25” 25.25” 25.25” 25.25”
Diameter of Wafer 24” 24” 24” 24” 24” 24”
Wafer Package – Qty 30 30 38 38 44 44
Cutting Edge .625” x 6” .625” x 6” .625” x 6” .625” x 6” .625” x 6” .625” x 6”
Drive System (motor) Direct-Drive Hyd. Direct-Drive Hyd. Direct-Drive Hyd. Direct-Drive Hyd. Direct-Drive Hyd. Direct-Drive Hyd.
Hydraulic Motor Flow Range 13-25 GPM 13-25 GPM 13-25 GPM 13-25 GPM 13-25 GPM 13-25 GPM
Optional Curb Sweeper
Drive System Direct-Drive Direct-Drive Direct-Drive Direct-Drive Direct-Drive Direct-Drive
Diameter of Sweeper 26” 26” 26” 26” 26” 26”
Shipping Weight of Sweeper 200 lb. 200 lb. 200 lb. 200 lb. 200 lb. 200 lb.
  • Adjustable arbour mounts allow control over bristle pressure to the surface while extending bristle life,
  • Replaceable cutting edge,
  • Completely covered to control dust. Ideal for warehouses, machine sheds, parking lots, job sites, etc. where dust containment is a MUST!
  • Reversible bristle direction for multipurpose.
