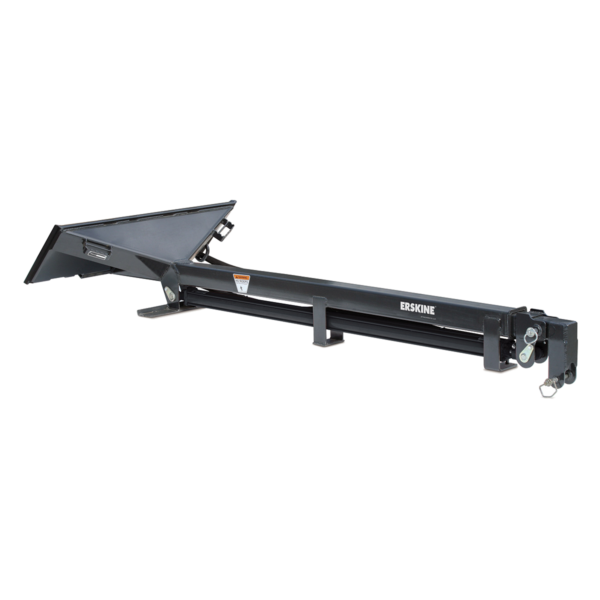

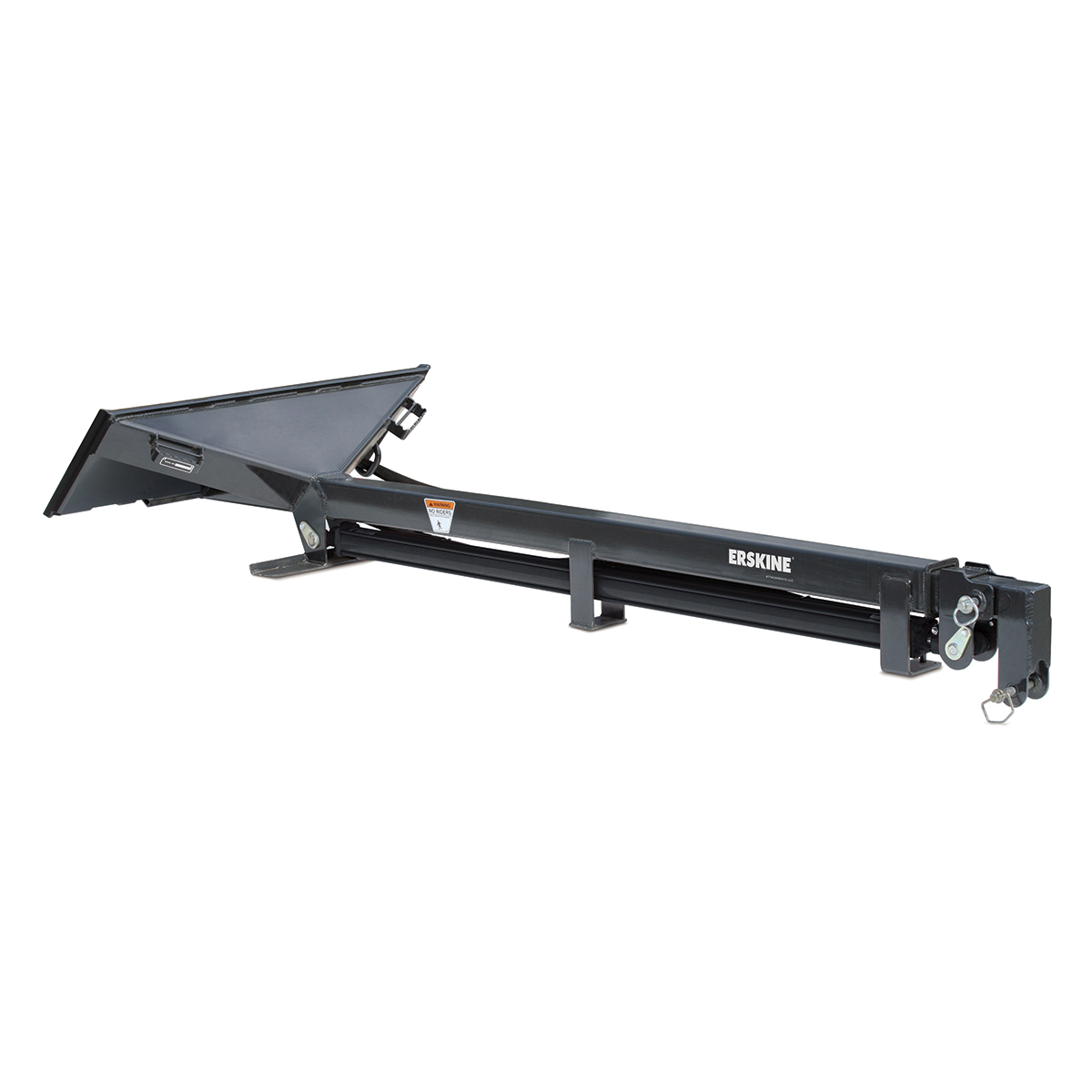

Erskine Teleboom

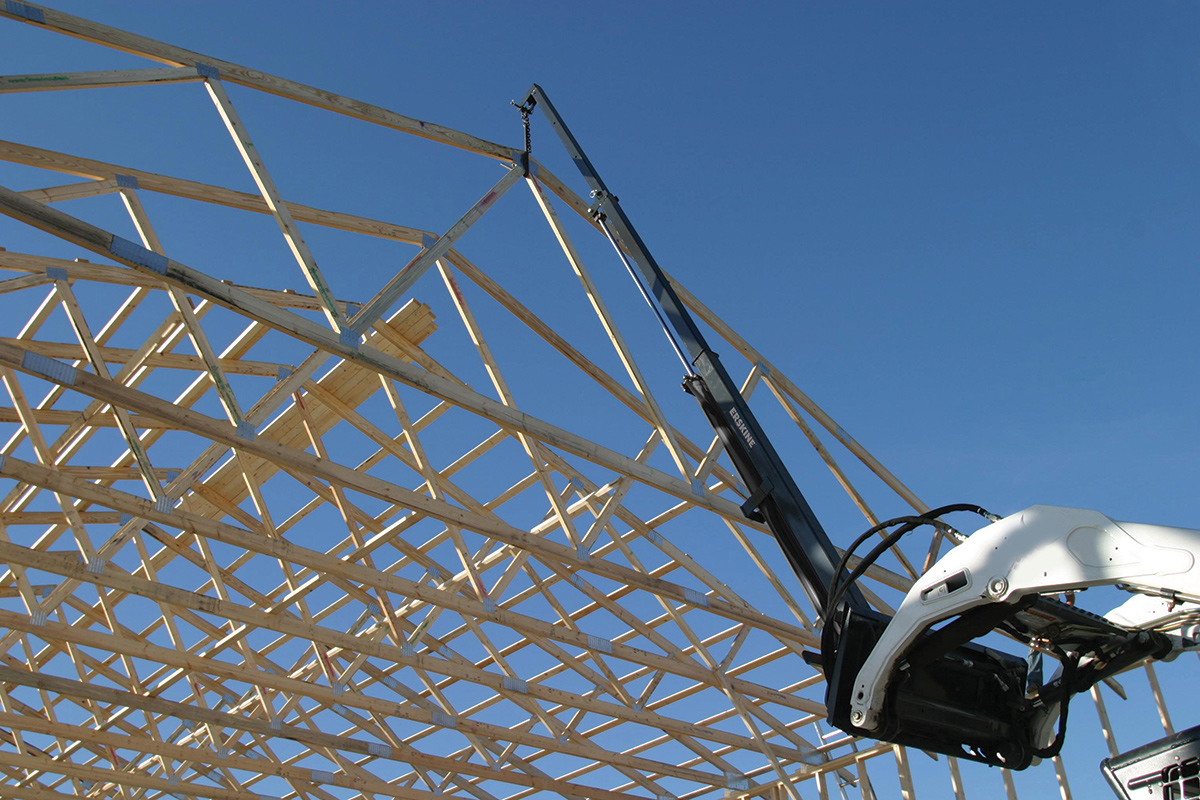

This is the ideal tool for general construction, truss installation, building erection, roofing/shingling, sign installation, on-the-farm, lighting-erection, pole placement, and much more! The Teleboom ensures accuracy and speed on every job – securely holding materials in place for projects with critical tolerances.

Model Teleboom Teleboom (Manual)
Part Number 900770 900771
Operating Weight 450 lb. 350 lb.
Width 45.2” 45.2”
Height 18” 18”
Length Fully Contracted 112” 112”

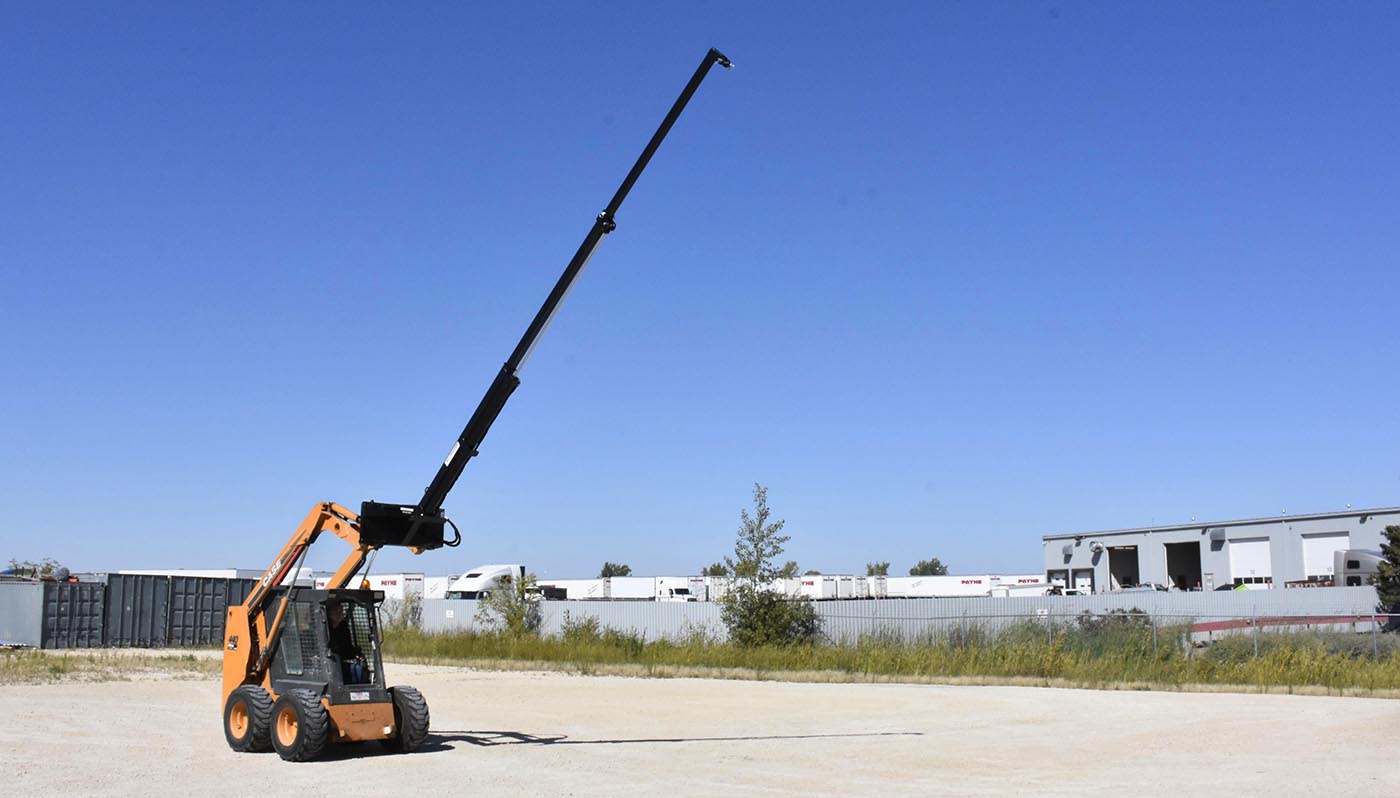

Length Fully Extended 256” 256”
Rated Load (Fully Extended Horizontal) 350 lb. 350 lb.
Rated Load (Fully Contracted Horizontal) 750 lb. 750 lb.
Rated Load (Fully Contracted @ 75°) 1,000 lb. 1,000 lb.
Skid Steer Rated Operating Capacity 1,750 lb. (minimum) 1,750 lb. (minimum)
Hydraulic Cylinder 2.5″ x 72″ N/A
Manual Boom Stroke 72” in 24” increments 72” in 24” increments

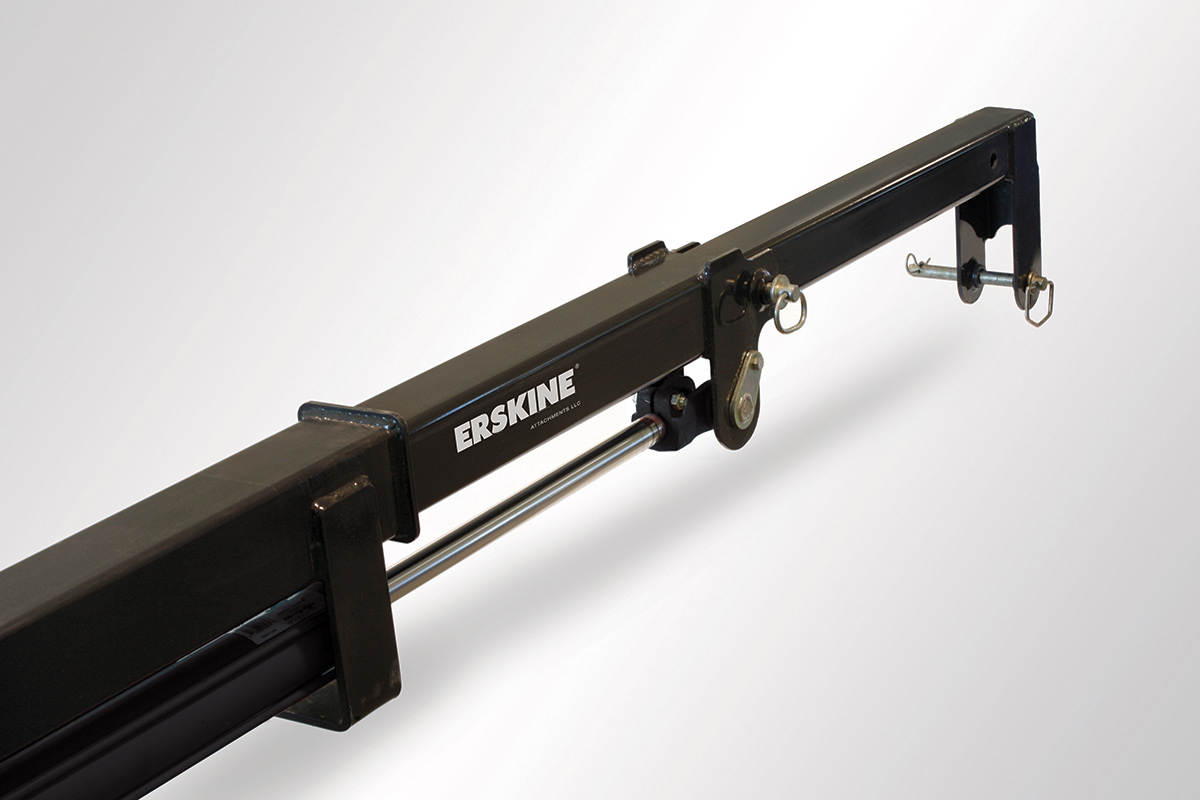

  • 72” hydraulic stroke allows for adjustments from the comfort of your cab,
  • Strong, lightweight tubular steel,
  • Ideal for general construction, truss installation, and material handling.
