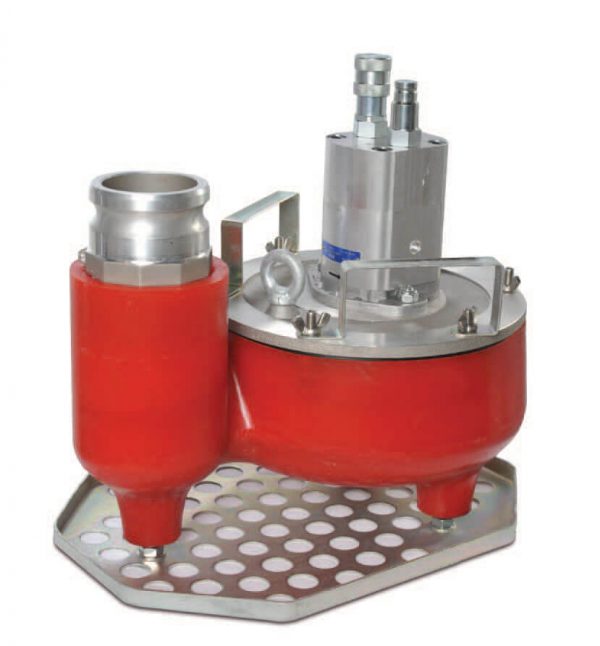

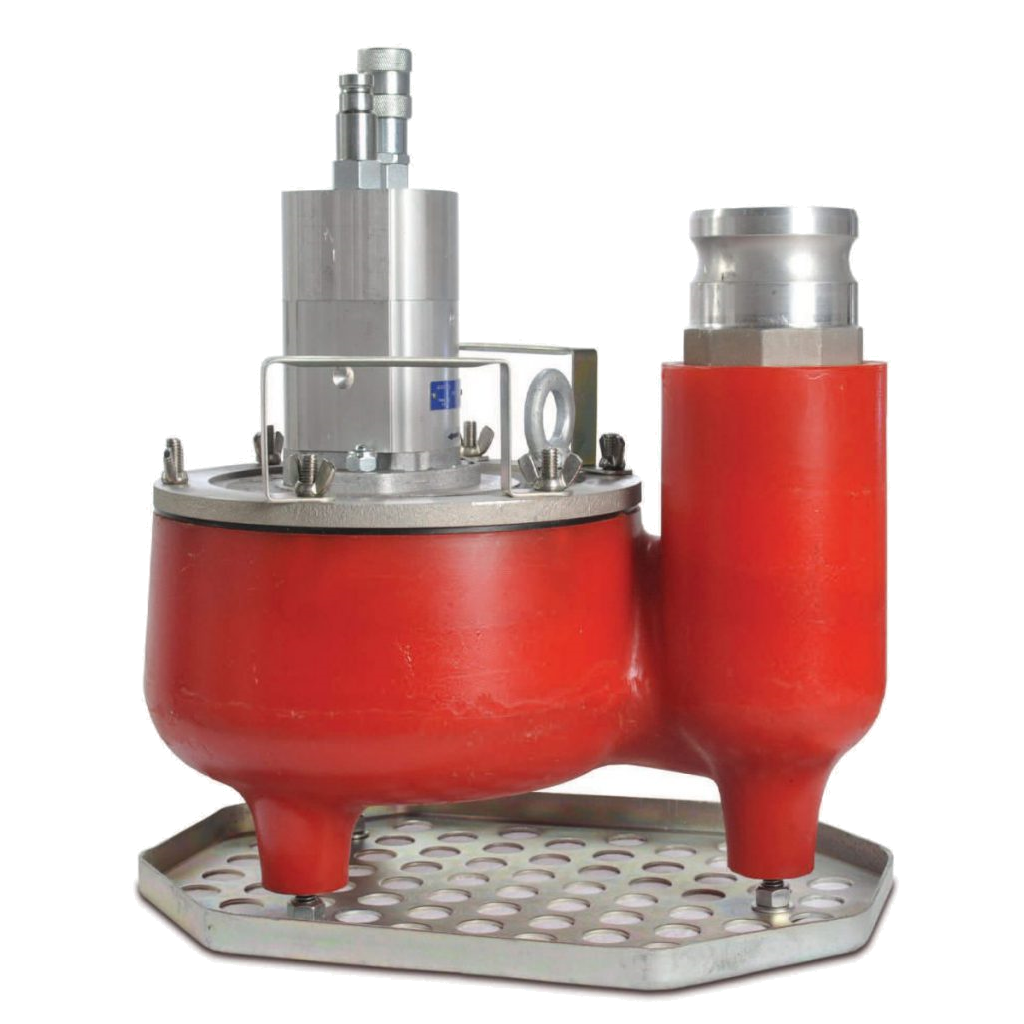

The TP30 compact submersible trash pump is a lightweight, efficient way to move large volumes of liquids that can contain sand, dirt and gravel very quickly.
This submersible centrifugal design requires no priming and can run dry all day without damage. The direct drive requires no maintenance as all moving parts are self-lubricated with passing hydraulic fluid. A urethane bowl and impeller are very durable and capable of moving liquids containing up to 30% solids. If you are pumping oily sludge, septic systems, muddy trenches or even clean water this a pump for you. The TP30 is fitted with flush face couplers that threads directly into SAE ports, No NPT hydraulic joints to
weep.
The TP30 Trash Pump comes with a 3” female NPT output port fitted to a 3” Cam Loc fitting standard.
[tab title=”Specifications” icon=”cog”]
PUMPING CAPACITY | 475 gpm (1800 lpm) |
PUMP TYPE | Trash-Sludge-Slurry-Water |
CONSTRUCTION | Urethane Volute and Impeller |
DISCHARGE | 3” Cam Loc – 3” NPT Female |
WEIGHT | 30 lbs. (13.6 kg) |
LENGTH | 14 inches (355 mm) |
WIDTH | 13 inches (305 mm) |
HEIGHT | 13 inches (330 mm) |
HYDRAULIC FLOW RANGE | 7-11 gpm (26-42 lpm) |
MAXIMUM PRESSURE | 2000 psi (138 bar) |
MAXIMUM BACK PRESSURE | 250 psi (17 bar) |
