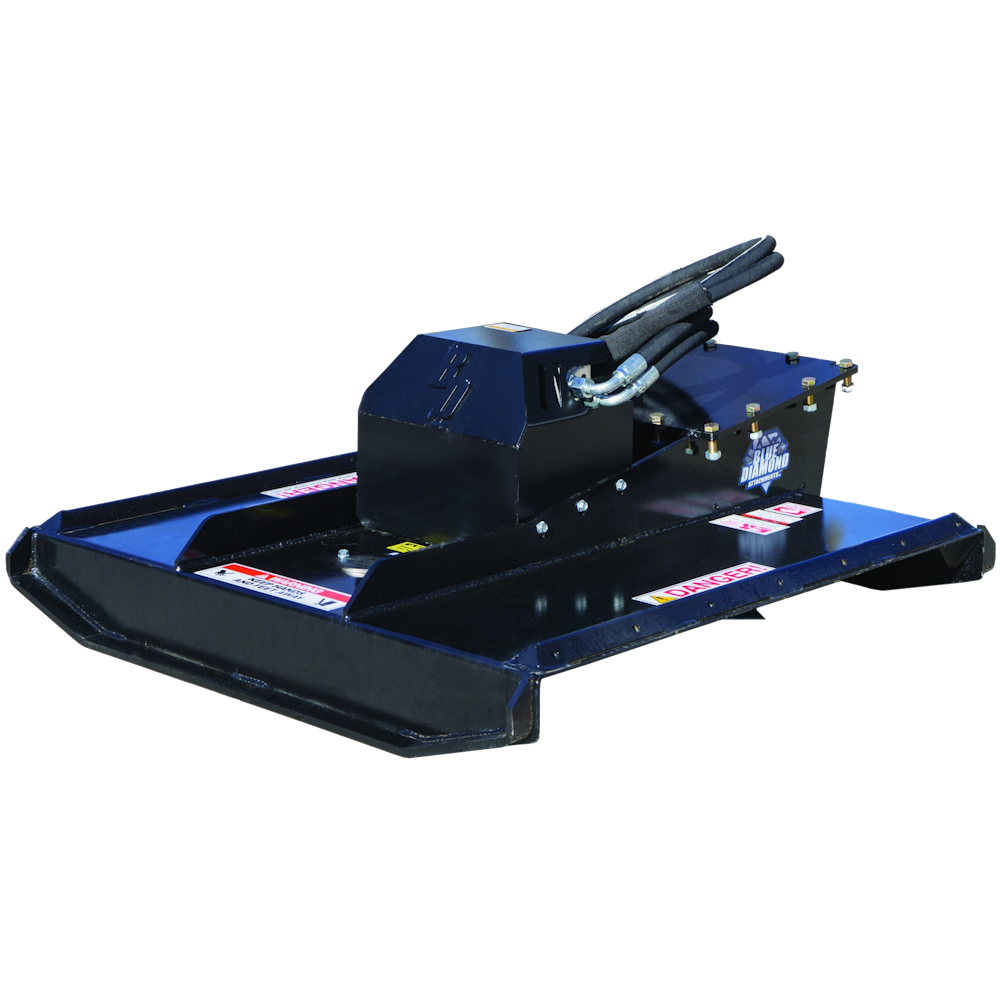

Blue Diamond Heavy Duty Brush Cutter

Digga MM10K - Mini Excavator Anchor Drive blue diamond severe duty series 2 mini excavator brush mower

Blue Diamond® Mini Excavator Brush Cutters are a natural extension of our skid steer brush cutter line. The extremely rugged direct drive system has a large flywheel that stores energy and keeps the blades cutting even in difficult conditions.  These brush cutters use a 3 blade system with straight AR400 double edged blades.

Categories: , ,
PART NUMBER MODEL WEIGHT (NO MOUNT) HOST MACHINE SIZE FLOW RANGE (GPM) CHAIN CURTAIN
103600 36″ 550 lbs fits 6,000-15,000 lbs 13-28 No
103610 36″ 550 lbs fits 6,000-15,000 lbs 29-36 No
103650 42″ 625 lbs fits 7,300-19,000 lbs 13-24 No
103660 42″ 625 lbs fits 7,300-19,000 lbs 25-31 No
103709 50″ 914 lbs fits 12,000-19,000 lbs 13-22 Yes
103712 50″ 914 lbs fits 12,000-19,000 lbs 23-28 Yes
103713 50″ 914 lbs fits 12,000-19,000 lbs 28-33 Yes
103714 50″ 1,216 lbs fits 12,000-19,000 lbs 34-41 Yes
  • Bidirectional operation
  • 1 year warranty
  • 3 blades
  • 1/4″ thick deck for 50″
  • 3/16″ thick deck for 36″ and 42″
  • New greasable direct drive system
