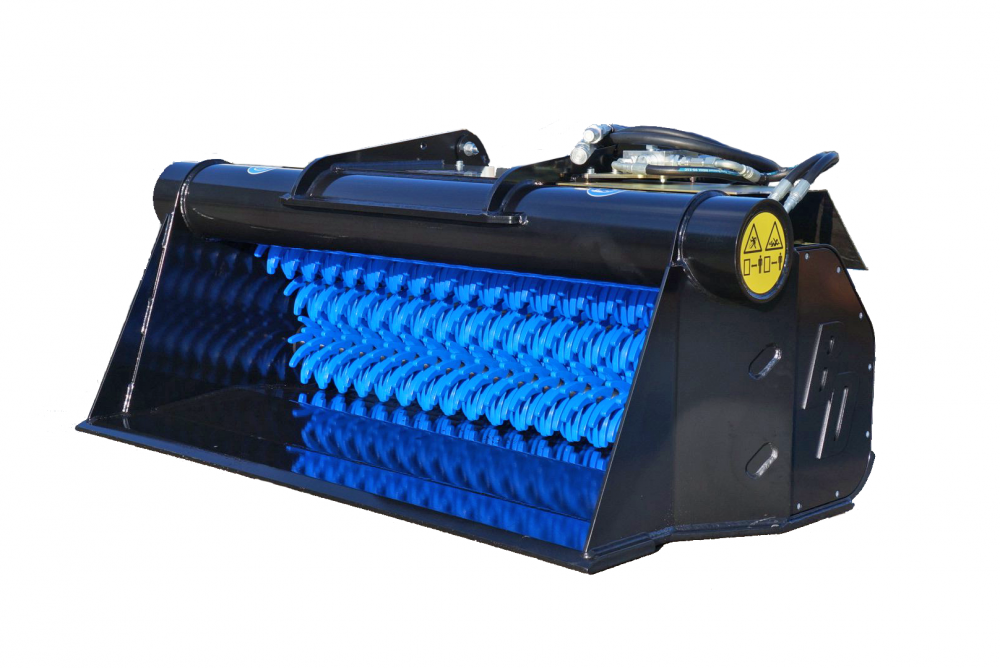

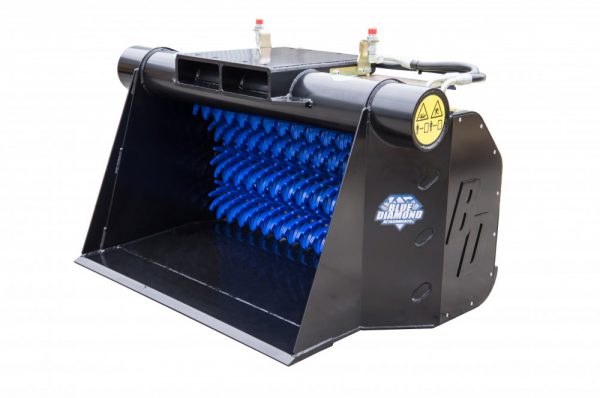

Blue Diamond Screening Bucket for Exavators

This Screening Bucket is used for the screening, aerating, separating and mixing of soils, aggregates, woodchip and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket.

This Blue Diamond screening bucket is used for the screening, aerating, separating and mixing of soils, aggregates, woodchip and compost. The efficient screening process is created by the star rotors agitating the material, causing the fines to flow through the rotating stars leaving the oversized material in the bucket.

FEATURES INCLUDE:

  • 1” or smaller material will flow through.
  • Horizontal shafts, fitted with poly stars that rotate in the same upwards direction.
  • Hardened steel cutting edge.
  • 2-position mount plate.
  • Mounts available to fit most machines.
  • 1-year warranty.

MODEL

HOST MACHINE SIZE

MAX FLOW GPM

MAX PSI

WEIGHT LBS

CAPACITY CU FT

3-33E

6,600-12,000

14

2900

640

6.00

4-40HE

12,000-22,000

23

2900

1,235

12.36

4-47HE

22,000-30,000

23

2900

1,320

14.85
