Blue Diamond Low Flow

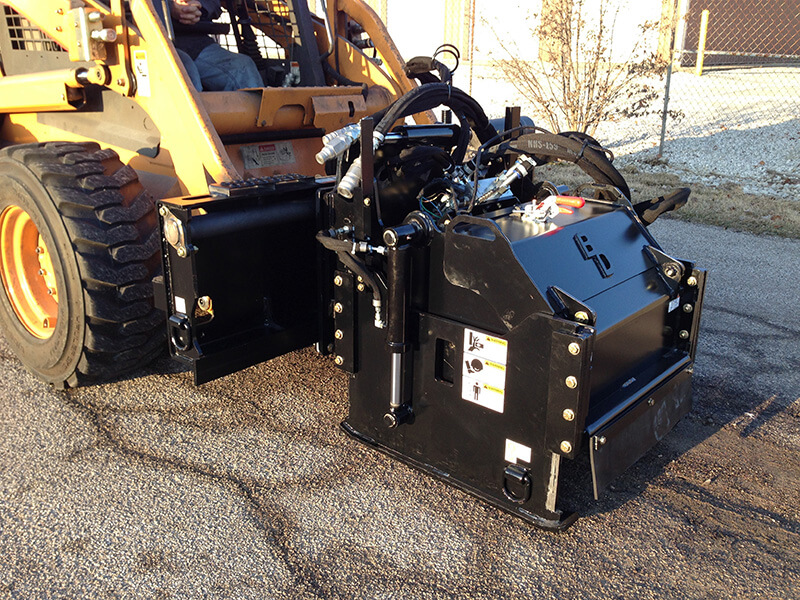

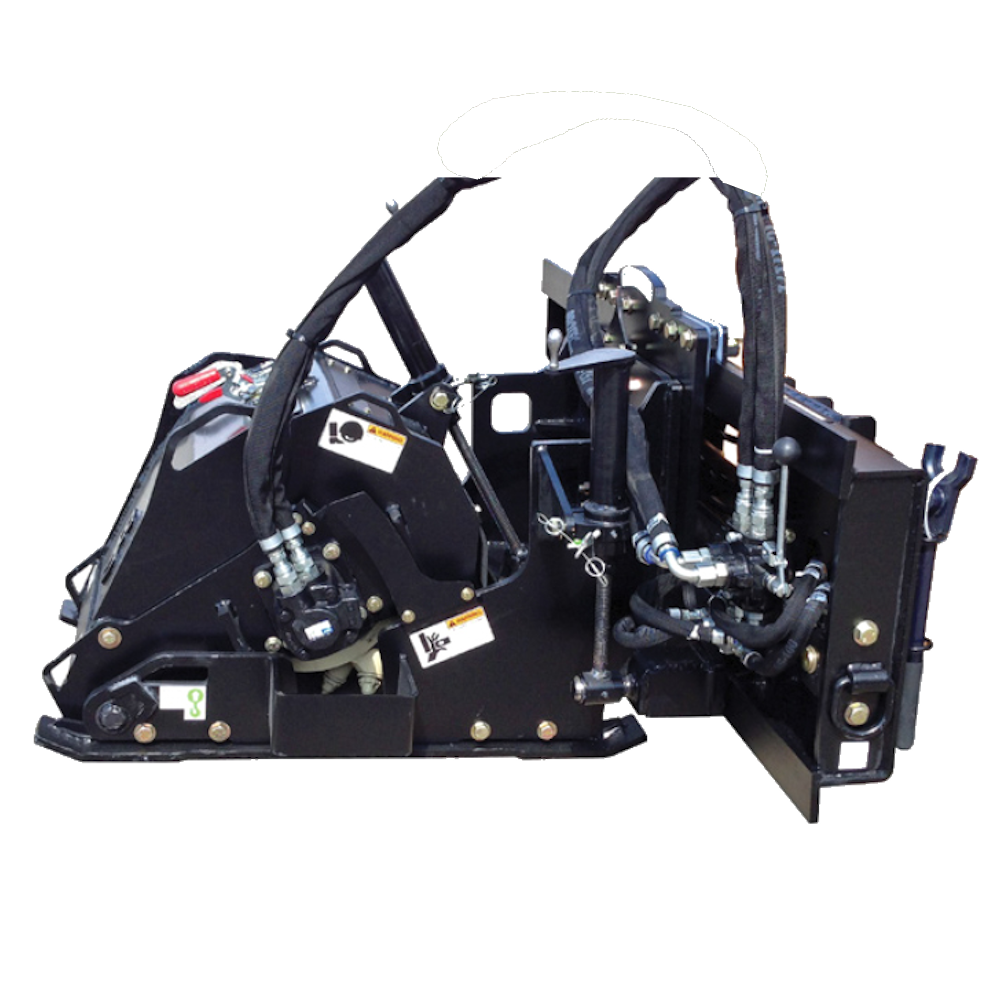

The Blue Diamond® Skid Steer Cold Planer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub featured in the high-flow models. These high end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment.

PART NUMBER MODEL # OF TEETH MIN-MAX FLOW MIN-MAX PRESSURE WEIGHT
160105 12″ Low Flow 15 GPM 2000 PSI 1,220 lbs
160110 16″ Low Flow 38 15 GPM 3000 PSI 1,250 lbs
  • Manual adjustment controls
  • Hydraulic side shift
  • Direct drive
  • High drum weight = less vibration
  • 5/8” thick drum tube
  • Easy access tooth replacement
  • Water kit available
  • Fine-cut drum available
  • 12″-16″ Grinding Widths
  • Up to 5″ Cutting Depth
