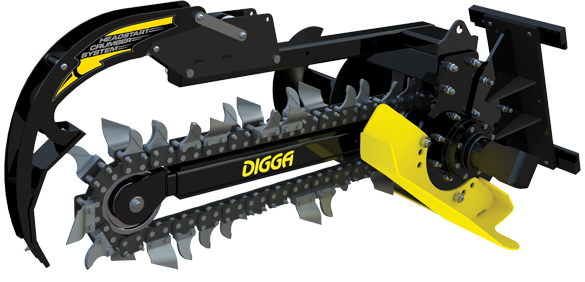

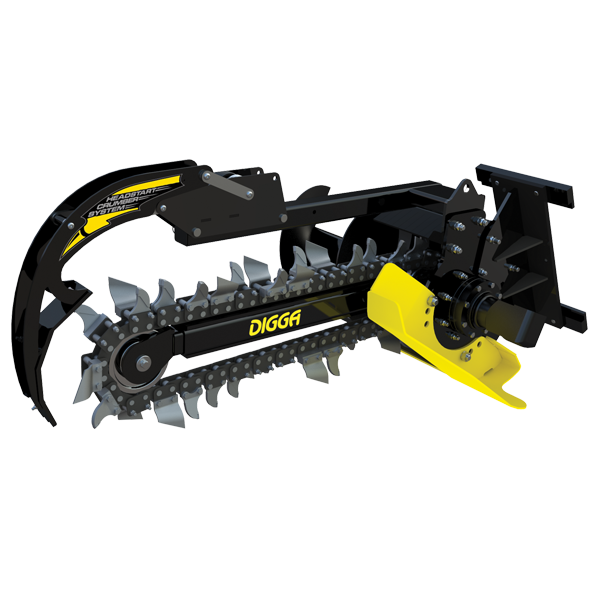

Digga Bigfoot Trencher for Skid Steers and Excavators

Digga’s bigfoot trencher features an adjustable depth control foot which ensures the operator trenches at a set depth at all times. Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and even frozen ground. Our trenchers are manufactured in-house to the highest industry quality, ensuring reliability and performance with the peace of mind you expect from a Digga product.

Digga’s trenchers are the most user friendly on the market; allowing the crumber bar to start in the trench and eliminating the need for the operator to get out of the machine to reset the crumber bar (patent pending). Their unique design foot can be seen from the cab to allow the operator to see when the trencher is in the correct trenching position.

Features

  • Headstart Crumber System (patent pending),
  • Adjustable Skid Foot to maintain constant digging depth,
  • Skid Foot is visible from the cab,
  • Frame can be side shifted for digging close to permanent structures,
  • 3 different Chain options, Earth, Combo, and Diggatac,
  • Industry Leading Warranty.

Ideal Use & Machine Suitability

  • Pipe laying for irrigation, underground power and communications, road repairs, and general construction
  • Excavators up to 4.5 ton, skid steer loaders, mini machines
SPECIFICATION900Digga North America - 12mth Trencher Gearbox & 12mth Motor Warranty
CUTTING DEPTHUP TO 36″
CUTTING WIDTHS4″ / 6″ / 8″
FOOT DEPTH PRESETS24″ / 30″ / 36″
RECOMMENDED FLOW13-25 GPM
MOTOR TYPE2K BELL EATON
MAX PRESSURE – DO NOT EXCEED3500 PSI @ 16 GPM
MAX FLOW – DO NOT EXCEED25 GPM @ 2900 PSI
MAX CONTINUOUS POWER34 HP
LENGTH76″
HORIZONTAL HEIGHT26″
WIDTH48″
WEIGHT575 LBS
