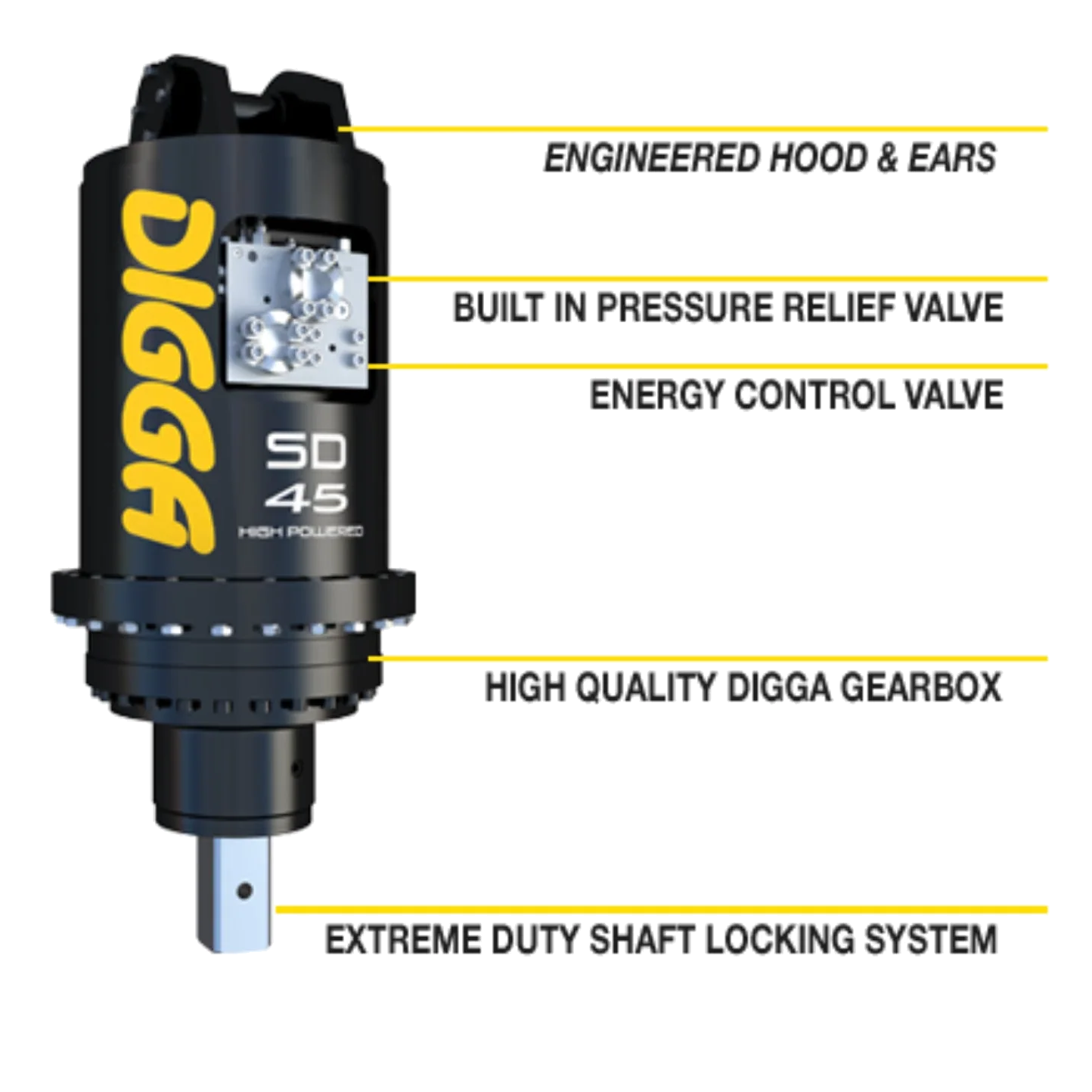

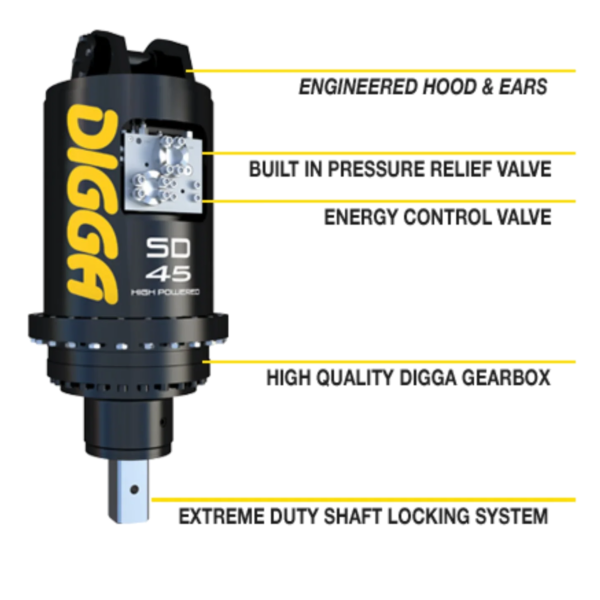

Digga SD45 Anchor Drive

Digga Single Speed Anchor Drives

digga high powered drives Digga auger drive

SINGLE SPEED ANCHOR DRIVES 5,000-7,000 FT-LBS.

Developed in conjunction with leading screw/anchor / helical pile installers around the world, Digga brings you the only true anchor drives available – designed and  manufactured inhouse specifically for the rigors of application.

Categories: , , , ,
SPECS 5ADS 6ADS 7ADS
NOMINAL TORQUE (FT LBS) 4,553 5,728 7,189
MOTOR TYPE EATON EATON EATON
MAX PRESSURE – DO NOT EXCEED 3500 PSI @ 27 GPM
MAX FLOW – DO NOT EXCEED 55 GPM @1700 PSI
MAX HORSE POWER 55 55 55
PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED
ENERGY CONTROL VALVE INCLUDED INCLUDED INCLUDED
STANDARD OUTPUT SHAFT 2.5″ HEX 2.5″ HEX 2.5″ HEX
HALO OPTIONAL OPTIONAL OPTIONAL
WEIGHT (LBS) 288 LBS 288 LBS 288 LBS
OVERALL LENGTH (IN) 33.7″ 33.7″ 33.7″
DIAMETER (IN) 11.4″ 11.4″ 11.4″
