DNP Hydraulic Quick Couplings

DNP Hydraulic Couplings have many benefits: colour coding, better fits, and pin locks. DNP quick couplings meet ISO standards and are used in high pressure, low-pressure drop and high impulse applications.

Category:

“Stay Together, Right Now…”

DNP Hydraulic Couplings have many benefits: colour coding, better fits, and pin locks. DNP quick couplings meet ISO standards and are used in high pressure, low-pressure drop and high impulse applications. Such as drilling rigs, cranes, HPU’S, heavy equipment, hammer attachments and much more.

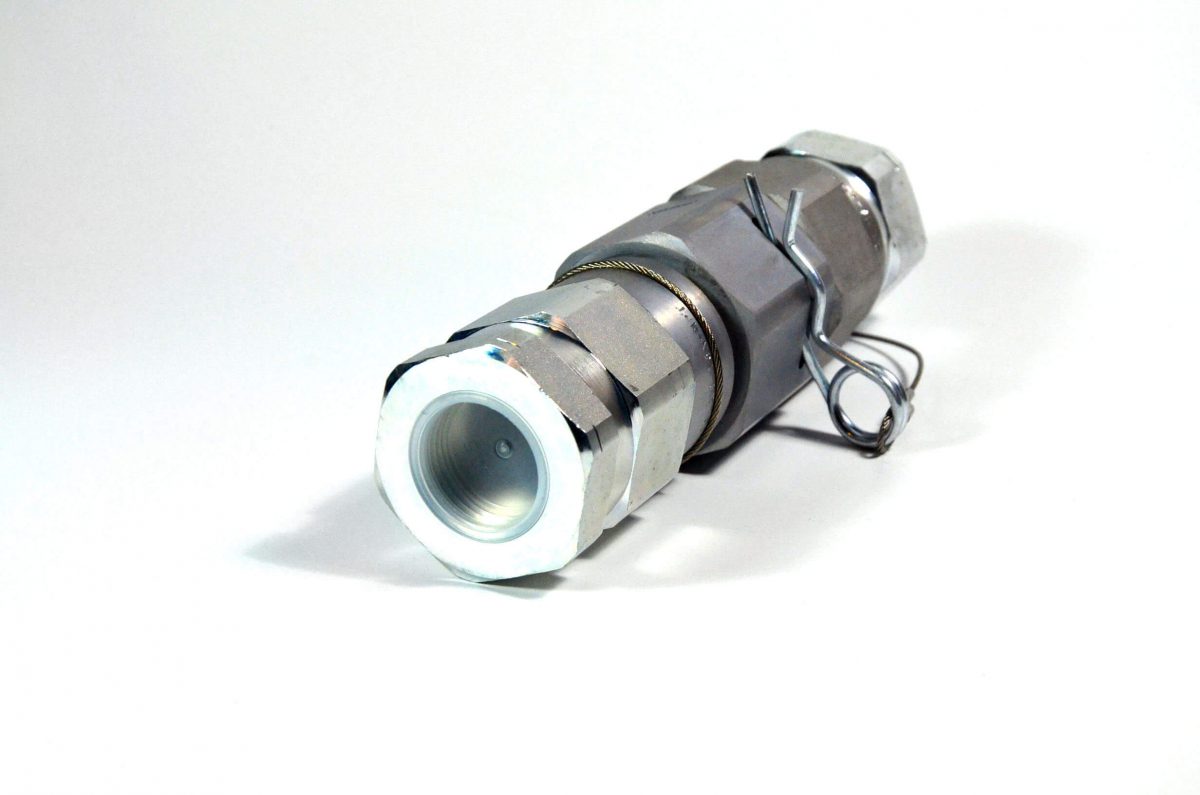

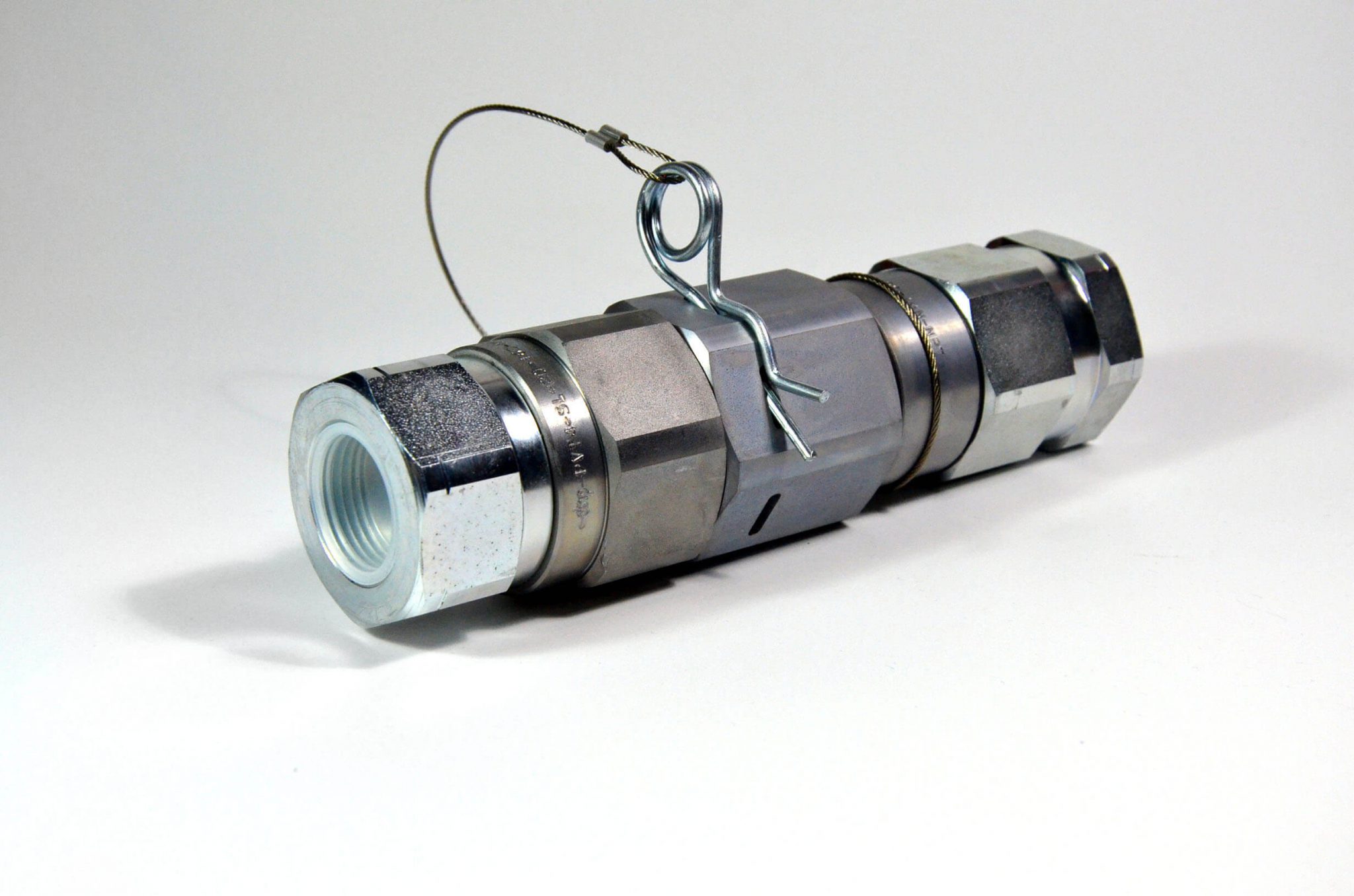

DNP Quick Coupling Hydraulic pin lock compression coupler

DNP PVT4SL SERIES QUICK COUPLINGS

Flat Face Screw Type – sizes: 1/4” thru 2” with pin lock to prevent uncoupling during operation. Used in a wide range of industrial markets where connecting and disconnecting of hydraulic circuits is needed.

  • Can connect by hand up to 5,000 PSI,
  • Exceeds 1,000,000 impulse cycles,
  • Seal is blowout resistant to 5,000 PSI when connecting or disconnecting with residual pressure,
  • High working pressures,
  • Flat face design eliminates spillage upon disconnection,
  • Heavy duty hex nut,
  • Fine threads for smooth connection,
  • Thread to connect style coupling eliminates brinelling issues,
  • Standard Threads: NPT, SAE & BSP,
  • A non-interchangeable upgrade to the FSI Series,
  • High tech Z-786 anti-corrosion plating salt spray tested for 700 hours before any appearance of surface red rust,
  • Slimmer design than FSI series with no loss in flow rate,
  • Additional Pin Lock to ensure no accidental disconnection.

hydraulic tool specifications

DNP hydraulic quick coupling

DNP PVT4 SERIES QUICK COUPLINGS

Flat Face Screw Type – sizes: 1/4” thru 2”. Used in a wide range of industrial markets where connecting and disconnecting of hydraulic circuits is needed.

  • Can connect by hand up to 5,000 PSI
  • Exceeds 1,000,000 impulse cycles
  • Seal is blowout resistant to 5,000 PSI when connecting or disconnecting with residual pressure
  • High working pressures
  • Flat face design eliminates spillage upon disconnection
  • Heavy duty hex nut
  • Fine threads for smooth connection
  • Thread to connect style coupling eliminates brinelling issues
  • Standard Threads: NPT, SAE & BSP
  • A non-interchangeable upgrade to the FSI Series
  • High tech Z-786 anti-corrosion plating salt spray tested for 700 hours before any appearance of surface red rust
  • Slimmer design than FSI series with no loss in flow rate
