Serious snow removal power – at the rear of your tractor.

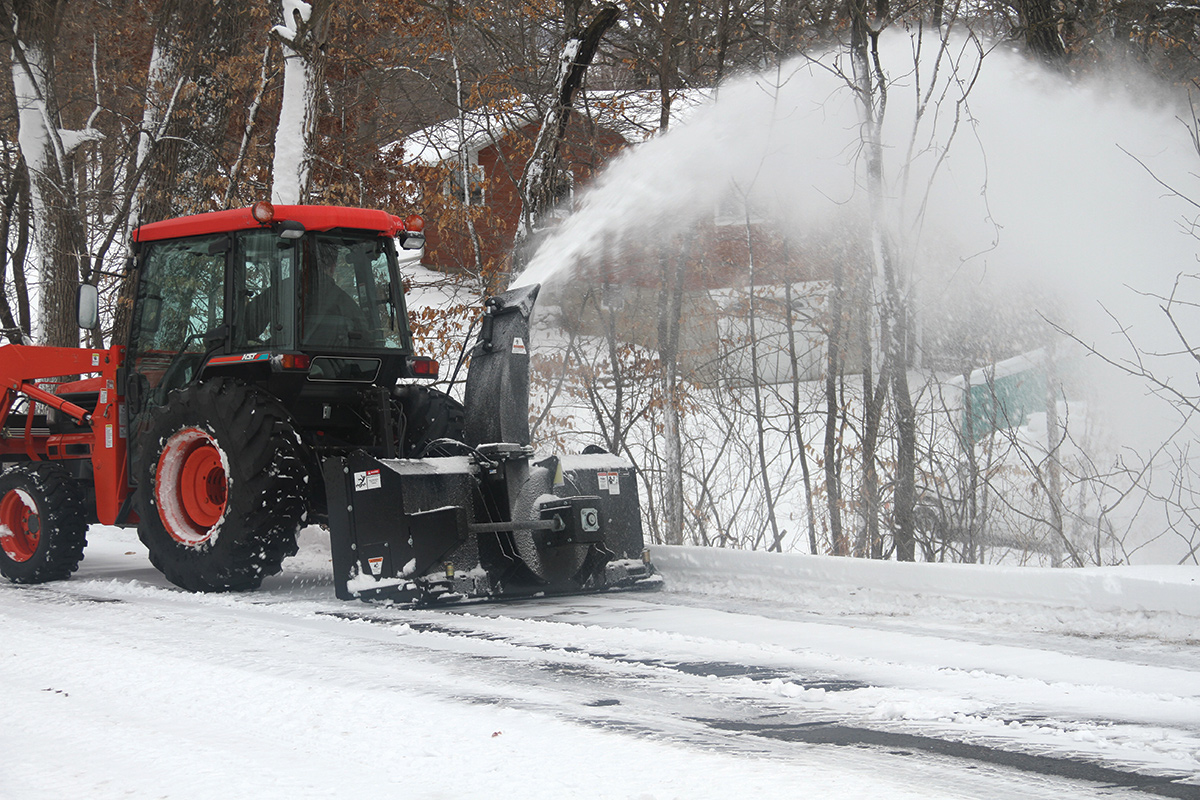

The Erskine Rear Pull PTO Snowblower allows you to drive forward while giving you the option to leave the front loader on the tractor if so desired. The blower lifts very high with the 3-point, so when a drift is encountered, the tractor can be turned around and backed into the drift to drag it out. The RP series is a 2-stage blower designed to gather snow efficiently. Features Blow snow while driving forward 270° chute rotation Optional hydraulic chute rotation (hand crank chute rotation comes standard) 20” and 24” fan diameters Optional hydraulic deflector Models to fit tractors from 20-75 HP
| Model | 620RP | 725RP | 825RP |
|---|---|---|---|
| Part Number | 920100 | 920102 | 920104 |
| Operating Weight | 840 lb. | 1,075 lb. | 1,150 lb. |
| Shipping Weight | 920 lb. | 1,175 lb. | 1,250 lb. |
| Width of Cut | 60” | 78” with Wings | 90” with Wings |
| Cutting Height | 29” | 33” | 33” |
| Auger Diameter | 16” | 16” | 16” |
| Fan Diameter | 20” | 24” | 24” |
| Discharge Chute | 270° Manual | 270° Manual | 270° Manual |
| PTO Speed | 540 RPM | 540 RPM | 540 RPM |
| Casting Distance | Up to 30’ | Up to 35’ | Up to 35’ |
| HP Range | 20-35 HP | 30-55 HP | 40-75 HP |
| Driveline Series | 14 | 35 | 35 |
| Cutting Edge | 5/8” x 6” Reversible | 5/8” x 6” Reversible | 5/8” x 6” Reversible |
| Skid Shoes | Adjustable/Replaceable | Adjustable/Replaceable | Adjustable/Replaceable |
| Hitch Category | Cat. I | Cat. I | Cat. I |
| Rear Blade* (optional) | *Must have enough auxiliary ports in tractor to operate. | ||
| Operating Weight | N/A | 165 lb. | 165 lb. |
| Cylinders | N/A | 2″ x 4″ (2) | 2″ x 4″ (2) |
| Moldboard Steel | N/A | .375″ Grade 50 Steel | .375″ Grade 50 Steel |
| Marker Rods | N/A | Included | Included |
| Hoses and Couplers (pioneer style) | N/A | Included | Included |
| Options | |||
| Hydraulic Chute Rotator w/hoses/couplers | |||
| Hydraulic Deflector w/hoses/couplers | |||
| Electric Deflector | |||
| Hardened Skid Shoes | |||
| Urethane Skid Shoes | |||
| Urethane Cutting Edge | |||
| Rubber Cutting Edge | |||
