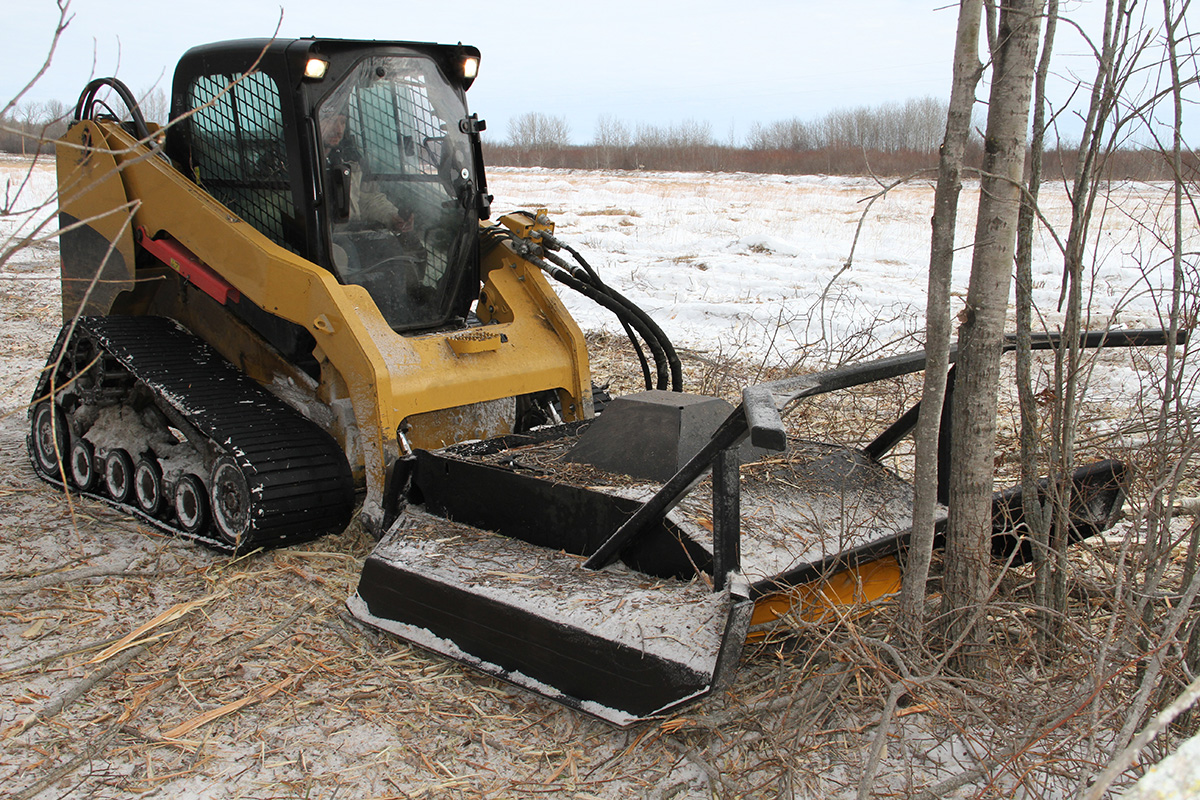

Extreme jobs call for the Extreme Heavy-Duty Brush Mower. This mower is armoured to withstand the toughest conditions. The push bar and open front design work to feed material into the mower where it is quickly shredded by four 5/8” thick blades.
Features
- The strength of the deck boxed cross-section has steel on 4 sides in a horseshoe shape and acts as the backbone of the deck,
- 4 posts and the bottom of the deck help protect the bearing carrier from wires,
- Funnelled open front design,
- ¼“ thick grade 50 steel deck material,
- Push Bar: heavy-duty 2×3 construction welded to the deck,
- Radial piston pump motor,
- Covered motor for safety,
- Large in-deck storage compartment,
- Tapered and armoured design,
- Our universal attachment plates fit most skid steers.
SPECIFICATIONS
| Model | 72″ (25.0-31.9 gpm) | 72″ (32.0-45.0 gpm) |
|---|---|---|
| Part Number | 901358 | 901359 |
| Overall Height | 36.4″ | 36.4″ |
| Overall Length | 85.8″ | 85.8″ |
| Overall Width | 78.9″ | 78.9″ |
| Cutting Width | 72″ | 72″ |
| Deck Thickness | 1/4″ | 1/4″ |
| Output Shaft Diameter | 3.25″ | 3.25″ |
| Shipping Weight | 2,575 lb. | 2,575 lb. |
| Operating Weight | 2,525 lb. | 2,525 lb. |
| Flow Rate | 25-32 gpm | 32-45 gpm |
| Tip Speed | 15,700 ft/min @ 30 GPM | 15,500 ft/min @ 40 GPM |
| Operating Pressure | 3,000 – 4,200 psi | 3,000 – 4,200 psi |
| Blades | (4) 5/8″ x 5″ x 12.4″ Straight Blades | (4) 5/8″ x 5″ x 12.4″ Straight Blades |
| Options | ||
| Factory Installed Couplers (Bobcat only) | ||
| Factory Installed High Flow Couplers | ||
