Heavy-Duty Trencher

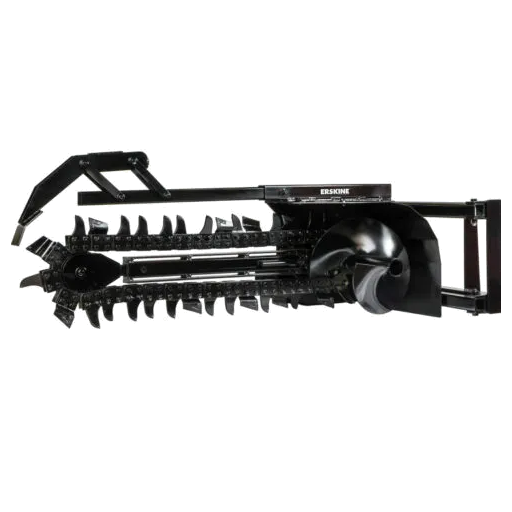

Erskine Heavy Duty Trencher

paladin-road-saw RS18/RS24 blue diamond roof truss jib

Professional applications require the performance of our Heavy-Duty Trencher. Built for the demands of rigorous trenching jobs, this unit outperforms because of its strength and durability. Avoid costly downtime and project delays by selecting the right tool for the job!

Category:
MODELTX150TX250TX350
RATED FLOW15-20 GPM20-30 GPM30-45 GPM
MAXIMUM TRENCH DEPTH4′4′5′
TRENCH WIDTH12″12″12″
SHAFT SPEED116-146 RPM120-170 RPM155-202 RPM
OPERATING PSI2,500-3,500 psi2,500-3,500 psi2,500-3,500 psi
OUTPUT TORQUE995-1,393 ft-lb1,219-1,706 ft-lb1,480-2,072 ft-lb
CHAIN STATION COUNTS 3′272727
CHAIN STATION COUNTS 4′333333
CHAIN STATION COUNTS 5′N/AN/A39
SIDE-SHIFTManualManualManual
WEIGHT (3’ / 6” DOUBLE CUP)1,095 lb.1,105 lb.1,195 lb.
WEIGHT (4’ / 6” DOUBLE CUP)1,160 lb.1,170 lb.1,270 lb.
  • Manual side-shift comes standard
  • Powerful hydraulic motor
  • No case drain required
  • Heavy-duty planetary drive system eliminates chain reduction
  • Replaceable spoil auger
  • Built-in skid shoe for auger depth control
