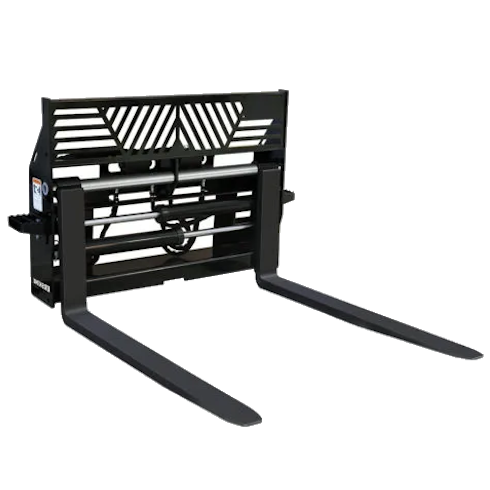

erskine hydraulic pallet fork

Erskine Hydraulic

erskine standard duty pallet forks blue diamond push brook skid steer attachment

The Hydraulic Pallet Forks use hydraulic power to adjust the width between forks without leaving the operator’s seat. Available with 48” or 60” forks with load ratings of 5,500 lb. at 24”.

Category:
Model 48” 60”
Part Number 900708 900709
Operating Weight 505 lb. 545 lb.
Frame Width 45.5” 45.5”
Frame Width with Steps 54” 54”
Fork Length 48” 60”
Overall Height 35.5” 35.5”
Overall Length 59.25” 71.25”
Capacity @ 24” Load Center 5,500 lb. 5,500 lb.
Minimum Fork Width 8.5” 8.5”
Maximum Fork Width 42.75” 42.75”
  • Forks move in and out simultaneously
  • Bolt-on steps assist in getting in and out of skid steer
  • 48” and 60” models available
