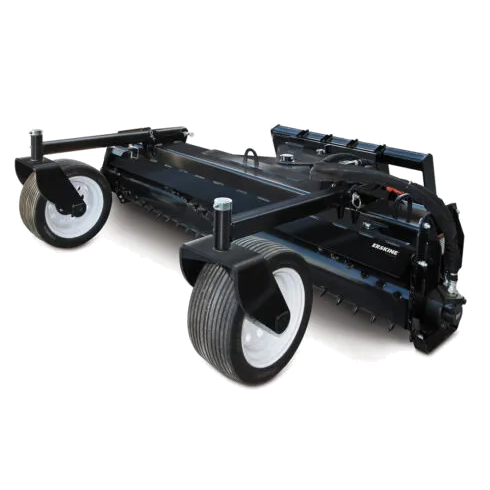

Erskine Soil Conditioner

This versatile unit rakes stones and debris to either side or straight ahead for easy pickup. The aggressive teeth on the large-diameter rotor pulverize soil like an ordinary tiller, with the benefit of faster ground speed. The counter-rotating rotor moves soil ahead of it as it tills, filling in low spots and chewing off high spots. It creates perfect seedbeds and windrows. The Utility Soil Conditioner separates rocks, tears up sod, and pulverizes dirt clods. We rake and till deeper than any of our competitors – as deep as 4″.

Part Number900533900535901381
Rotor Width72”84”96”
Overall Width79.5”91.5”103.5”
AnglingManual 25°Manual 25°Manual 25°
Angled Rotor Width65.25″76″87″
Hydraulic AnglingOptionalOptionalOptional
Wheels/Tires18″ x 8.5″18″ x 8.5″18″ x 8.5″
Teeth88 Carbide Tipped104 Carbide Tipped120 Carbide Tipped
Recommended Hyd. Flow15-33 GPM15-33 GPM15-33 GPM
Mounting PlateUniversalUniversalUniversal
Operating Weight1,100 lb.1,200 lb.1,300 lb.
  • Direct-drive motor turns large 10″ rotor
  • Tungsten – carbide teeth
  • Power angling (optional)
  • Large solid rubber wheels
  • Optional box and plates (Wing Kit)
