Erskine UTV Hydraulic Snowblower and Power Pack

Erskine UTV Snowblower attachment. This is a serious snowblower for your UTV and snow clearing. Make short work out of the deepest banks of snow that winter will throw at you this year.

UTV-Snowblower-front-view-300x200.jpg UTV-Snowblower-action-close-300x200.jpg UTV-Snowblower-action-left-view-300x200.jpg UTV-Snowblower-action-left-rear-view-300x200.jpg UTV-Snowblower-studio-main-view-300x200.jpg

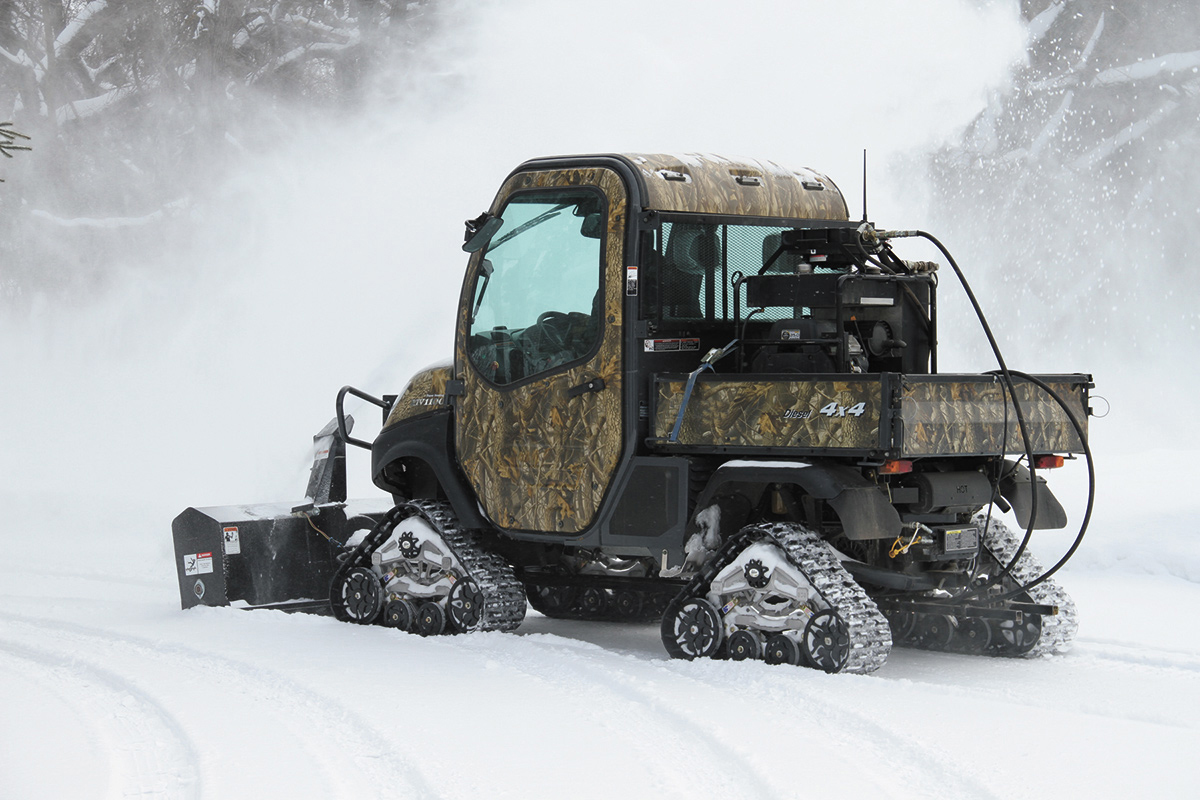

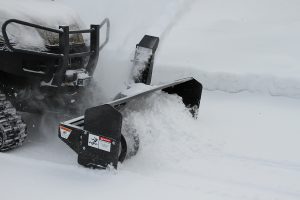

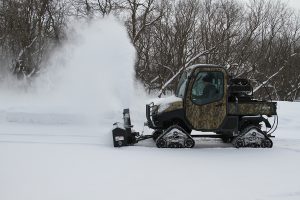

Put your UTV to work during the winter months with Erskine’s 60” UTV Snowblower!

The 12” auger feeds the 4-blade fan to efficiently cast snow up to 20’. This is a serious snowblower for your UTV and snow clearing. Make short work out of the deepest banks of snow that winter will throw at you this year.

hydraulic tool manual icon book

Features

  • 60” cutting width,
  • 12” open flight auger, 16” 4-blade fan design,
  • Hydraulic power unit sold separately,
  • Use of existing UTV winch for lift operation is required.

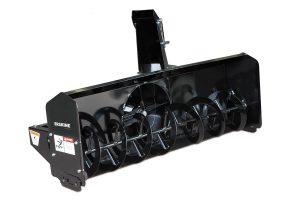

Model UTV Snowblower
Part Number 910011
Cutting Width / Height 60” / 22”
Cutting Edge 1/4” x 2.5 bolt-on
Skid Shoes Adjustable
Auger Diameter 12” open flight
Fan Diameter 16” 4-blade
Chute Rotation 12V – 360°
Fan Shear Protection Pressure Relief
Auger Shear Protection Yes
Casting Distance Up to 20’
Overall Height x Length x Width 38” x 28” x 61”
Operating Weight 210 lb.

Add Some Power

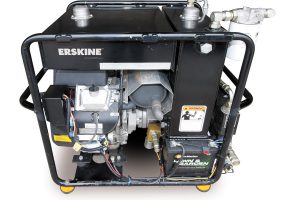

UTV Hydraulic Power Pack

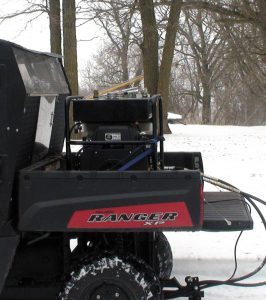

back of UTV Erskine hydraulic power pack

The Power Unit fits conveniently in your cargo box and supplies hydraulic power to front mounted Erskine hydraulic attachments like the snowblower above.

Features

  • Electric start, key ignition,
  • Gear-type hydraulic pump,
  • Hydraulic oil cooler with thermostatic fan control,
  • System relief valve,
  • Fuel and oil tank top filter/strainer, oil fill sight gauge, spin-on return filter.

SPECIFICATIONS

Model UTV Hydraulic Power Unit
Part Number 910001
Engine Subaru/Robin V-Twin
Engine HP 25 HP
Flow Rate 13.5 GPM
Operating Pressure 2,500 psi
Oil Reserve Capacity 7 gallons
Oil Filtration 10 micron
Fuel Tank Capacity 5.5 gallons
Fuel Consumption @ Full Throttle 1.85 gallons per hour
Overall Height 29”
Overall Length 36”
Overall Width 22”
Weight (dry) 300 lb.
