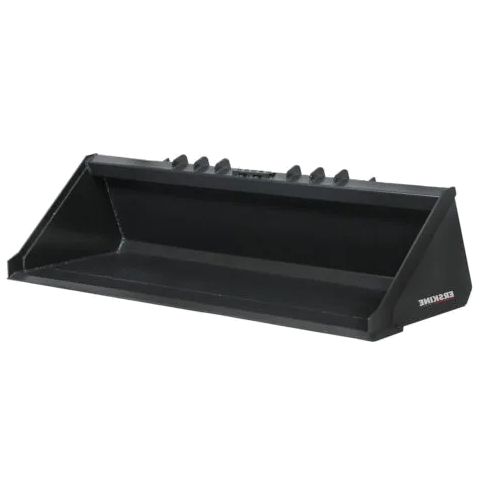

Erskine HD Low Profile Material Bucket

erskine low profile material bucket skid steer attachment erskine concrete bucket skid steer attachment

The Heavy-Duty Low Profile Material Bucket is engineered for larger HP machines. The additional steel thickness and larger cutting edge are designed to withstand rigorous use.

Categories: , ,
Bucket w/Bolt-on Cutting Edge 66″ 72″ 78″ 84″
Part Number 925017 925018 925019 925021
Weight 657 700 lb. 742 lb. 785 lb.
Width 66″ (67″ outs. edge) 72″ (73″ outs. edge) 78″ (79″ outs. edge) 84″ (85″ outs. edge)
Height 20″ 20″ 20″ 20″
Depth 31.47″ 31.47″ 31.47″ 31.47″
Capacity (struck) .422 cu yds .461 cu yds .499 cu yds .539 cu yds
Built in Cutting Edge 1″ x 8″ 1″ x 8″ 1″ x 8″ 1″ x 8″
Top Tubular Reinforcement 3″ x 3″ x 1/4″ 3″ x 3″ x 1/4″ 3″ x 3″ x 1/4″ 3″ x 3″ x 1/4″
Body and Endplate Thickness 1/4″ grade 50 1/4″ grade 50 1/4″ grade 50 1/4″ grade 50
Recommended HP 70 HP + 70 HP + 70 HP + 70 HP +
Options Tooth Package Additional Bolt On Cutting Edge
  • 1⁄4” thick sides
  • 1⁄2” thick bottom
  • 1” thick x 8” wide cutting edge
  • Reinforced attach plate
  • 1⁄4” thick back with 1⁄4” reinforcement plate
  • Recommended for 70 horsepower and above and all track loaders
  • Treaded step
