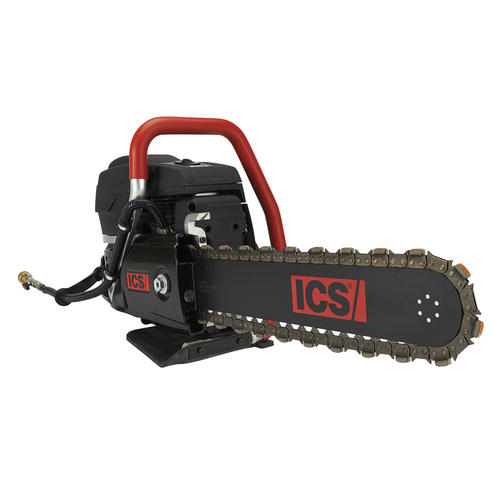

The 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburettor, and piston and cylinder.
Based on the best-selling 695 saw platform, the 695XL-F4 is the highest horsepower ICS gas power cutter for frequent use by general construction and concrete professionals.
Product Details
- Use on concrete, stone, masonry, brick, block, ductile iron, cast iron, PVC, HDPE and more
- Most versatile gas power cutter
- Piston and cylinder lowers engine temperature
- Longer life muffler with reinforced internal baffle
- Easy-to-start with higher energy ignition system
- Easy-to-tune carburetor
- Operates FORCE4, PowerGrit and PowerGritXL diamond chain up to 20″
Specifications, Details & Support
| Engine Type | 2-stroke, single cylinder, air cooled |
|---|---|
| Displacement | 5.7 cu in (94 cc) |
| Engine Speed Max | 9,300 +/- 150 rpm (max) |
| Engine Speed Idle | 2,700 +/- 100 rpm |
| Fuel Mix Ratio | 50:1 (2%) fuel-to-oil |
| Fuel Capacity | 0.26 gal (1 L) |
| Power Type | Gas |
|---|---|
| Use Application | HDPE Asphalt Ductile Iron Brick Cast Iron Block Concrete Masonry PVC Stone AC Pipe |
| Weight, Saw Only | 21 lbs (9.6 kg) |
| Cutting Depth | up to 20 in (50 cm) |
| Bar Length | 12 in (30 cm) 16 in (40 cm) 20 in (50 cm) |
| Noise Level (Power) | 115 dB(A), (Kwa = 1.0 dB(A)) |
| Chain Length | 12 in (30 cm) 16 in (40 cm) 20 in (50 cm) |
| Noise Level (Pressure) | 104 dB(A), (K=1.0 dB(A)) |
| Horsepower | 6.4 hp (4.8 kW) |
| Front Handle Vibration, ahv eq Concrete Cutting | 3.6 m/s2 (K=0.2 m/s2) |
| Rear Handle Vibration, ahv eq Concrete Cutting | 3.1 m/s2 (K=0.2 m/s2) |
| Front Handle Vibration, ahv eq Pipe Cutting | 5.62 m/s2 (K=0.2 m/s2) |
| Rear Handle Vibration, ahv eq Pipe Cutting | 5.28 m/s2 (K=0.2 m/s2) |
| Water Supply (Min) | 20 psi (1.4 bar) |
| Water Flow Req (Min) | 2 gpm (8 lpm) |
