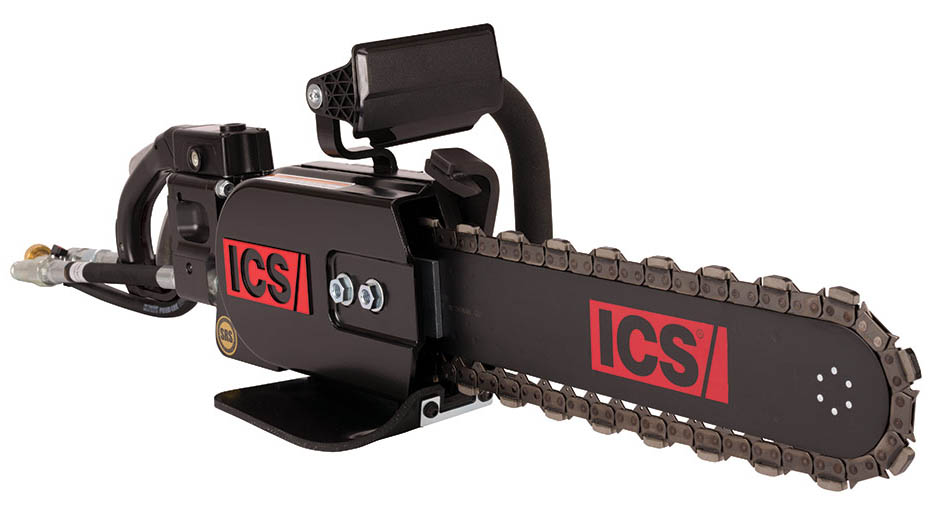

Deep Cutting Hydraulic Powered Saw
The ICS 890 Series hydraulic cutting system offers the superior strength of FORCE4® technology. From the redesigned, more durable rear handle, to the easy to replace drive sprocket, this saw is engineered to stand up to your toughest jobs. In a package that exceeds industry standards, this sleek powerhouse is packed with features designed to make it work as hard as you do.
ALSO AVAILABLE WITH FLUSH CUT – contact us for details.
FEATURES AND BENEFITS
8 GPM
| Weight | 27.3 lbs (12.4 kg) with 15-inch (38 cm) bar and chain |
| Bar Length | Up to 25 inches (63 cm) |
| Motor Speed | 6100 rpm |
| Powerhead Dimensions | 23 inches (58.5 cm) length; 10.5 inches (26.5 cm) height; 9.5 inches (24 cm) width |
| Torque | 122 in-lbs |
| Horsepower | 6 hp (4.6 kW) |
| Hydraulic Supply | 8 gpm (30 lpm), 2500 psi (172.5 bar) |
| Noise Level | 107 dB @ 3 ft (1 m) |
| Vibration Level | 2 meters/second; 2 (front handle); 6 meters/second 2 (rear handle) |
| Water Supply | Minimum 20 psi (1.5 bar) |
12 GPM
| Weight | 27.3 lbs (12.4 kg) with 15-inch (38 cm) bar/chain and 1’ (.3 m) hose whips) |
| Bar Length | Up to 25 in (63 cm) |
| Motor Speed | 6500 rpm |
| Powerhead Dimensions | 23 in (58.5 cm) length; 10.5 in (26.5 cm) height; 9.5 in (24 cm) width |
| Torque | 170 in-lbs (19.2 Nm) |
| Horsepower | 8 hp (6 kW) |
| Hydraulic Supply | 12 gpm (45 lpm), 2500 psi (172.5 bar) |
| Noise Level | 98 dB @ 3 ft (1 m) (Sound pressure level); 107 dB @ 3ft (1 m) (Sound power level) |
| Noise Level | 2.0 m/second2 (front handle); 6.0 m/second2 (rear handle) |
| Water Supply | Minimum 20 psi (1.5 bar) |
