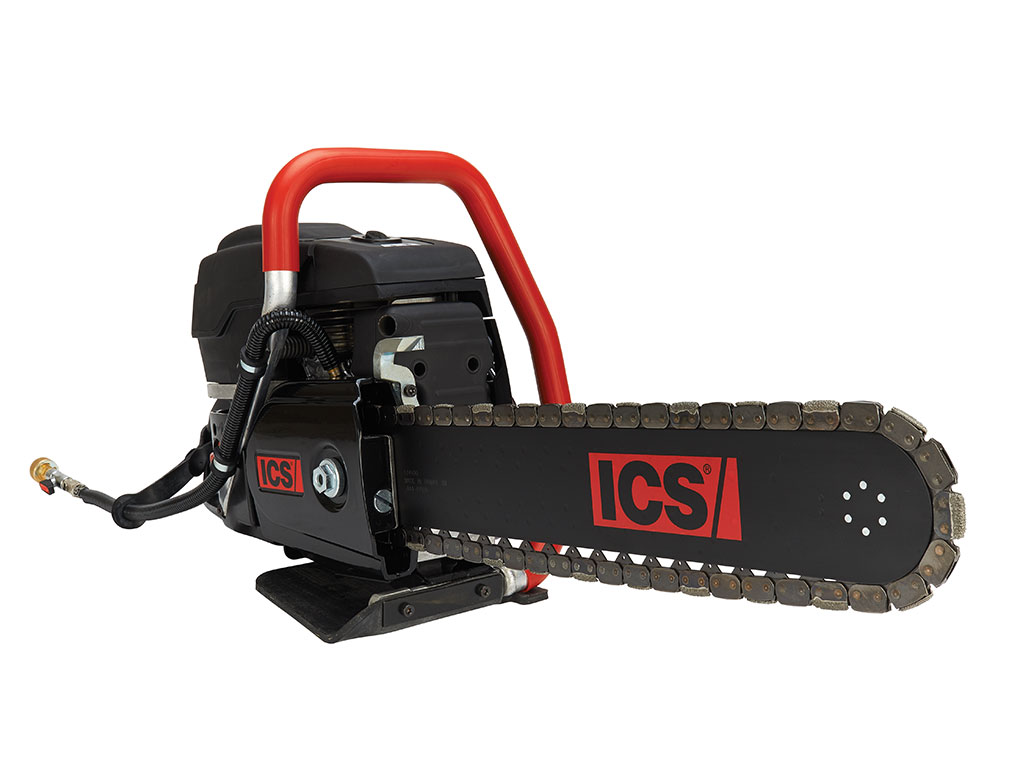

ICS 695XL Gas Powered Concrete Chainsaw

The new 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.

The new 695XL features an easy-to-start engine with a higher energy ignition system and durable, long-lasting components including a new muffler, carburetor, and piston and cylinder.

Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas power cutter for frequent-use by general construction, utility contractors, and concrete professionals.

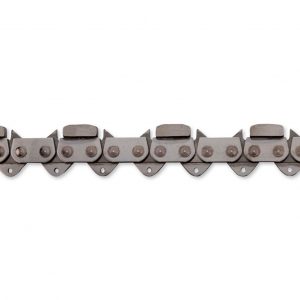

Available with 12 in. (30 cm), 16 in. (40cm) guide bars and the entire line of FORCE3®, FORCE4®, and PowerGrit®Series diamond chains.

FEATURES AND BENEFITS

  • Use on concrete, stone, masonry, ductile iron pipe, cast iron pipe, and more,
  • Most versatile gas power cutter,
  • New piston and cylinder lowers the engine temperature,
  • Better operator control,
  • Longer life muffler with reinforced internal baffle,
  • Easy-to-start with higher energy ignition system,
  • New easy-to-tune carburetor.

hydraulic tool specifications - hydraulic tools and attachments hydraulic tool manual icon book hydraulic tools and attachments

Engine Type2-Stroke, Air Cooled
Displacement94cc (5.7 cu-in)
Horsepower4.8kW (6.4 hp) @ 9000 rpm
Torque5.7 Nm (50.4 in-lbs) @ 7200 rpm
Engine Speed9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
Chain Speed at Maximum Power28 m/s (5500 ft /min)
Weight9.5 kg (21 lbs) powerhead only
Dimensions46cm (18″) L x 36cm (14″) H x 30cm (12″) W
StarterRecoil, dust, and water-resistant
IgnitionSpecial water-resistant electronic ignition
Fuel ratio2% (50:1) gasoline-to-oil
Fuel Capacity1 liter (0.26 gallon)
Water Supply RequirementMinimum: 1.5 bar (20 psi)
Water Flow RequirementMinimum: 1.5 bar (20 psi)
Guaranteed Sound Power Level, Lwa (1)115 dB(A); (Kwa=1.0 dB(A))
Equivalent Sound Pressure at the Operator’s Ear Lwa104.6 dB(A) (K=1.0 dB(A))
Vibration, ahv eq Concrete Cutting (2)3.6 m/s2 (K=1.0 m/s2) Front Handle/3.1 m/s2 (K=1.0 m/s2) Rear Handle
Vibration, ahv eq Pipe Cutting (2)5.62 m/s (K=0.2 m/s2) Front Handle/5.28 m/s2 (K=0.2 m/s2) Rear Handle
