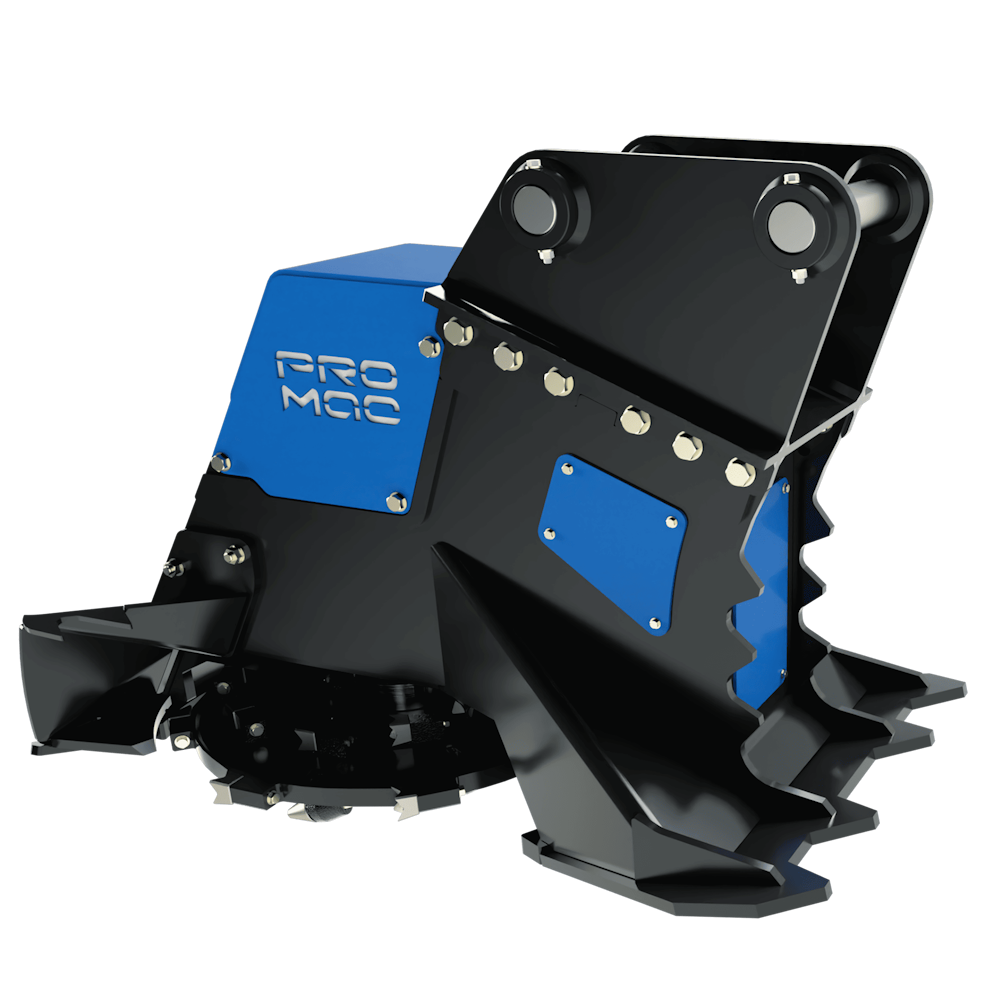

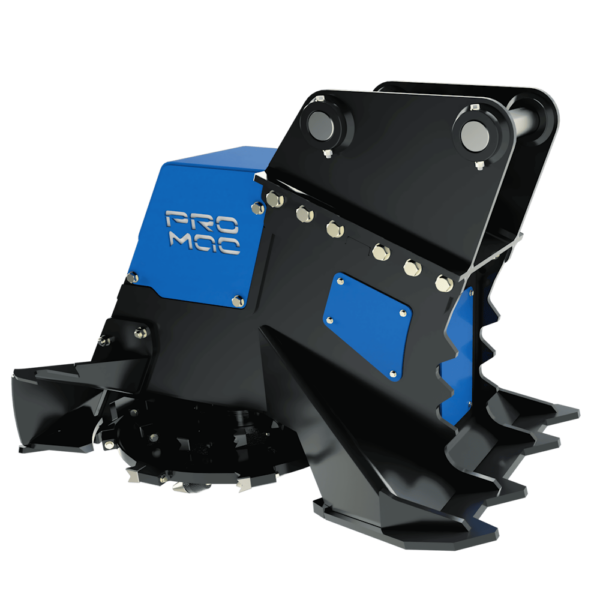

Promac R-Series 36/52

Down and dirty, pristine and neat, or somewhere in-between we will help guide you to the highest performance possible through two distinct model sizes and multiple disc and tooling options. Our flexible, isolated direct drive system allows for maximum power output while retaining the durability to out last the rest in the harshest of environments. Designed for 15 – 30+ ton excavators with minimum flows of 32 and 42gpm powering high efficiency bent axis piston motors.

R 36 R 52
EXCAVATOR SIZE (TONS) 15 – 20 20 – 30+
CUT WIDTH 36″ 52″
APPROX. WEIGHT 2300 LBS 3000 LBS
MOTOR SIZE 80CC 107CC
MOTOR TYPE BENT AXIS PISTON BENT AXIS PISTON
FLOW, MIN 32 42
PRESSURE, MIN 4000 4000
RPM, MAX 1800 1800

PN R36/R52

  • Industry proven hydraulic motors
  • Unparalleled drivetrain with our ‘forestry-rated’ bearing assembly made of high strength alloy
  • Steel components
  • Integrated rear debris shields protect operator
  • Inlet chutes collect and retain material
  • Anvil options for enhanced top mulching functionality
  • Customization to suit your vehicle: pin type of quick-change brackets
