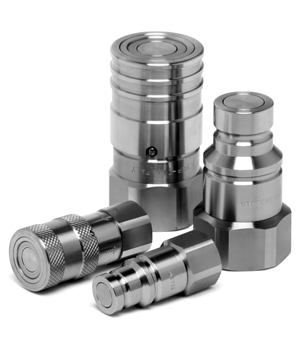

Stucchi FL Series Couplers ISO 16028 Interchange

The FL couplings are manufactured in 316 stainless steel to eliminate leakage during connection/disconnection, reduce contamination in the circuit, and offer optimal resistance to corrosion. Standard seals are Viton/Fluorocarbon; other materials available for various fluids and operating temperatures.

The FL Series Flat Face Couplings are designed with high corrosion resistance and excellent fatigue life.

  • Size range: 1/4” thru 2”
  • Port options: NPTSAEBSP
  • Interchanges with ISO 16028
  • Working pressure: 15-35 MPa/2175-5075 psi range
  • Minimal pressure drop design
  • Minimal air inclusion during connection
  • Non-spill design eliminates leaks and contamination
  • Highly corrosive environments or transmission of corrosive fluids
  • Ideal for offshore, marine, industrial equipment, chemical, pharmaceutical and food processing
Body Size 1/4″3/8″1/2″5/8″3/4″1″1 1/4″1 1/2″2″
Material Stainless
Port Options BSPNPTSAE
Port Size 1/4″3/8″1/2″5/8″3/4″1″1 1/4″1 1/2″2″
Valve Style Flat Face
Working Pressure Up to 5000
