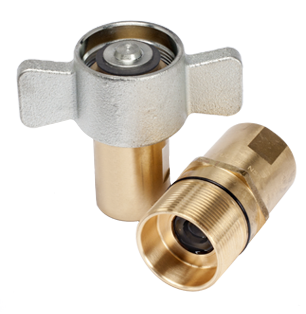

Stucchi – Wing Nut Style Hydraulic Coupler Series

The Wing Style Series Rugged Wing Nut provides reliable service wherever a coupling is required to connect under pressure with minimum spillage and air inclusion.

FEATURES
  • Size range: 3/4” thru 1 1/2”
  • Port options: NPT
  • Interchanges with Parker 6100, Aeroquip 5100
  • Threaded sleeve allows connection/disconnection under pressure
  • Seals: Nitrile
  • Coupler and nipple: brass material
  • Wing: cast steel
APPLICATIONS
  • Any instance requiring a connect-under-pressure coupling with minimum spillage and air inclusion
  • Oil and gas, mobile construction, industrial
ADDITIONAL INFORMATION
Body Size1/2″3/4″1″1 1/4″1 1/2″
MaterialBrass
Port OptionsNPT
Port Size1/2″3/4″1″1 1/4″1 1/2″
Valve StylePoppet
Working PressureUp to 5000
