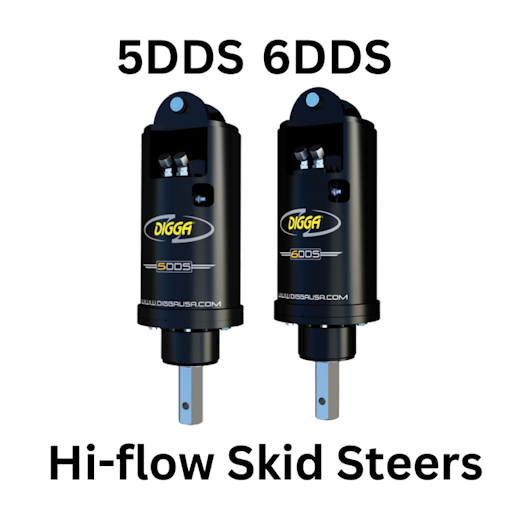

Digga 5DDS 6DDS for Hi-flow Skid Steers

Auger Drives For Hi Flow Skid Steers

Digga Auger Drivers 1DSS - 2DSS, 1-2.5 ton machines Digga 5DDT 6DDT Auger Drives for 4.5t - 8t machines

Digga’s drilling augers for skid steer loaders are the ultimate in performance, quality, and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Complete manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Categories: , , , , , ,
SPECS 4DDS 5DDS 6DDS
TORQUE (FT-LBS
@ 3000 PSI		 3,583 3,903 4,909
MAX TORQUE FT-LBS
@ 3500 PSI		 4,180 4,553 5,728
RECOMMENDED FLOW (GPM) 10-36 10-36 12-36
MOTOR TYPE EATON EATON EATON
MAX PRESSURE –
DO NOT EXCEED		  3500 PSI @ 27 GPM
MAX FLOW –
DO NOT EXCEED		  42 GPM
@ 3100 PSI		 55 GPM@ 1700 PSI
MAX HORSE POWER 55 34 55
PRESSURE RELIEF VALVE INCLUDED N/A INCLUDED
STANDARD OUTPUT SHAFT 2″ HEX 2.5″ HEX 2.5″ HEX
HALO OPTIONAL OPTIONAL OPTIONAL
RECOMMENDED AUGER A4 / RC4 A6 / RC6 A6 / RC6
MAX DRILLING DIAMETER
(CLAY / SHALE)*		 24″ 24″ 30″
MAX DRILLING DIAMETER
(EARTH)*		  40″ 40″ 40″
WEIGHT (LBS) 180 290 290
OVERALL LENGTH (IN) 29″ 33.7″ 33.7″
DIAMETER (IN) 9.4″ 11.4″ 11.4″

(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
