blue diamond 4-in-1 bucket skid steer attachment

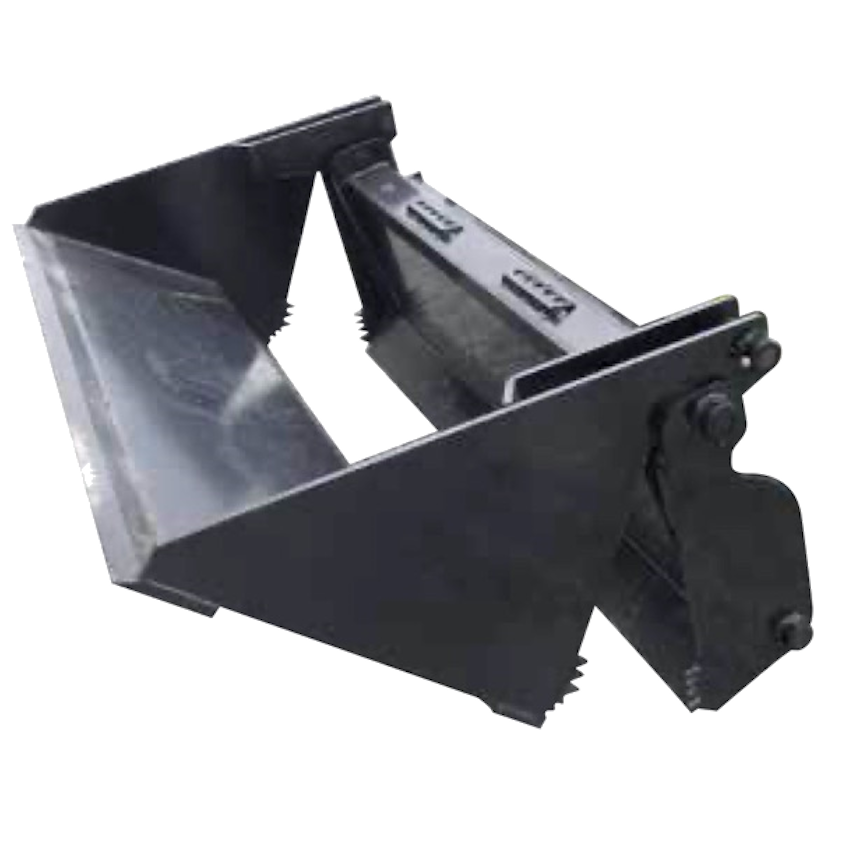

Blue Diamond 4-In-1 Combination Bucket

blue diamond rock bucket skid steer attachment blue diamond dual motor skid steer attachment

The Blue Diamond® Skid Steer 4 in 1 Bucket has set the standard with this extremely durable attachment. It will make a skid steer or compact track loader into a very versatile machine. It can be used as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket, or back drag with the open bucket like a box blade. It uses 2 powerful cylinders and can be greased on all pivot points.

Categories: , ,
PART NUMBER MODEL WEIGHT STRUCK CAPACITY
108780 66″ 4-in-1, W/Smooth Edge 862 lbs 13.9 cu ft
108785 72″ 4-in-1, W/Smooth Edge 908 lbs 15.2 cu ft
108790 78″ 4-in-1, W/Smooth Edge 979 lbs 16.5 cu ft
108795 84″ 4-in-1, W/Smooth Edge 1,004 lbs 17.7 cu ft
108776 60″ 4-in-1, W/Teeth 855 lbs 12 cu ft
108781 66″ 4-in-1, W/Teeth 750 lbs 13.9 cu ft
108786 72″ 4-in-1, W/Teeth 981 lbs 15.2 cu ft
108791 78″ 4-in-1, W/Teeth 959 lbs 16.5 cu ft
108796 84″ 4-in-1, W/Teeth 932 lbs 17.7 cu ft
  • Protected hoses
  • Standard bolt-on edge on dozer portion
  • Front bolt-on edge available
  • Weld on shanks and teeth available
