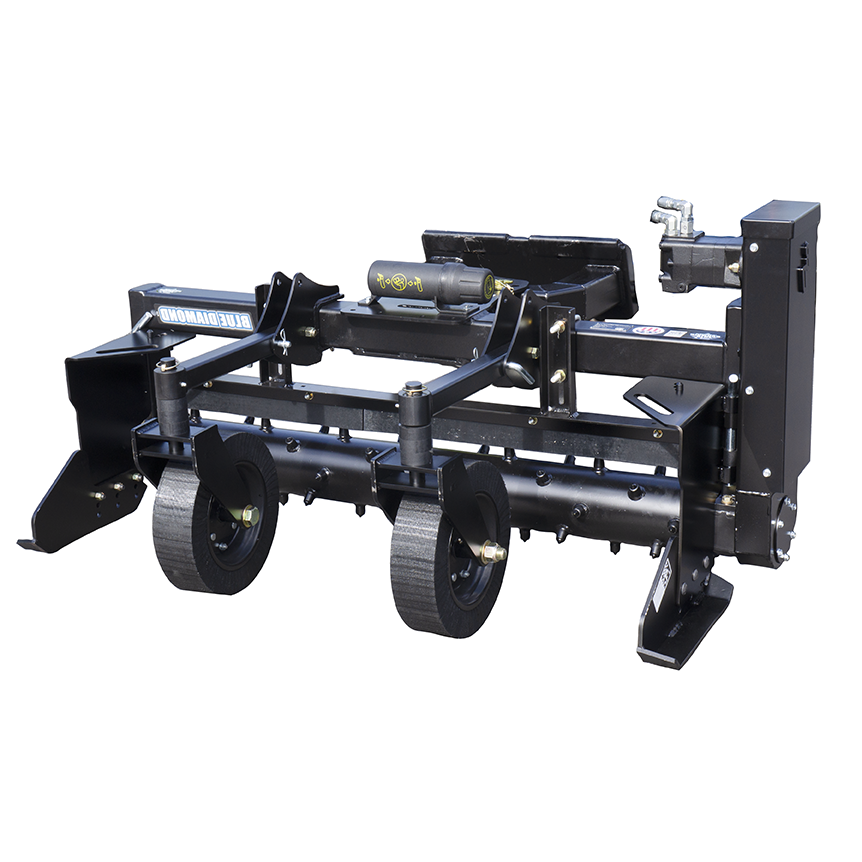

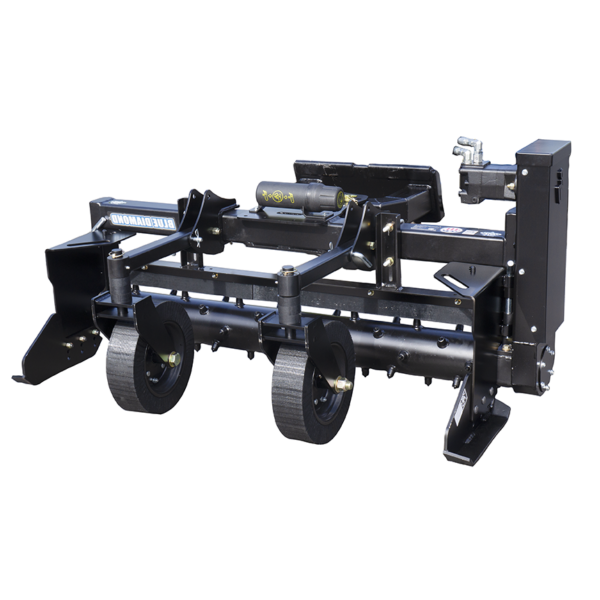

Blue Diamond Heavy Duty Power Rake Attachment

Blue Diamond Heavy Duty Series 2

Blue Diamond Extreme Duty Power Rake Attachment Erskine Rotary Tiller

The Blue Diamond® Heavy Duty Series 2 Power Rake follows close on the heels of our previously released Severe Duty model. This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine with mounts offered for mini and full size skid steer machines.

Category:
PART NUMBER TEETH WORKING WIDTH (STRAIGHT) WORKING WIDTH (ANGLED) OVERALL WORKING WIDTH WEIGHT
132407 Replaceable 48″ 42″ 58″ 528 lbs
132400 Fixed 48″ 42″ 58″ 580 lbs
132408 Replaceable 60″ 52″ 70″ 580 lbs
132401 Fixed 60″ 52″ 70″ 584 lbs
132409 Replaceable 72″ 66″ 82″ 600 lbs
132402 Fixed 72″ 72″ 82″ 628 lbs
  • 7” diameter drum with 1.5” teeth
  • Chain drive unit for increased torque
  • Spindles on drum are 1 3/8” diameter in greaseable bearings
  • Drum widths: 48”, 60”, and 72”
  • Overall width 9” more than drum width
  • 7/8” greaseable axles on wheels
  • Airless tires
  • Flip up wheels
  • 1.25” spindles with adjustable height
