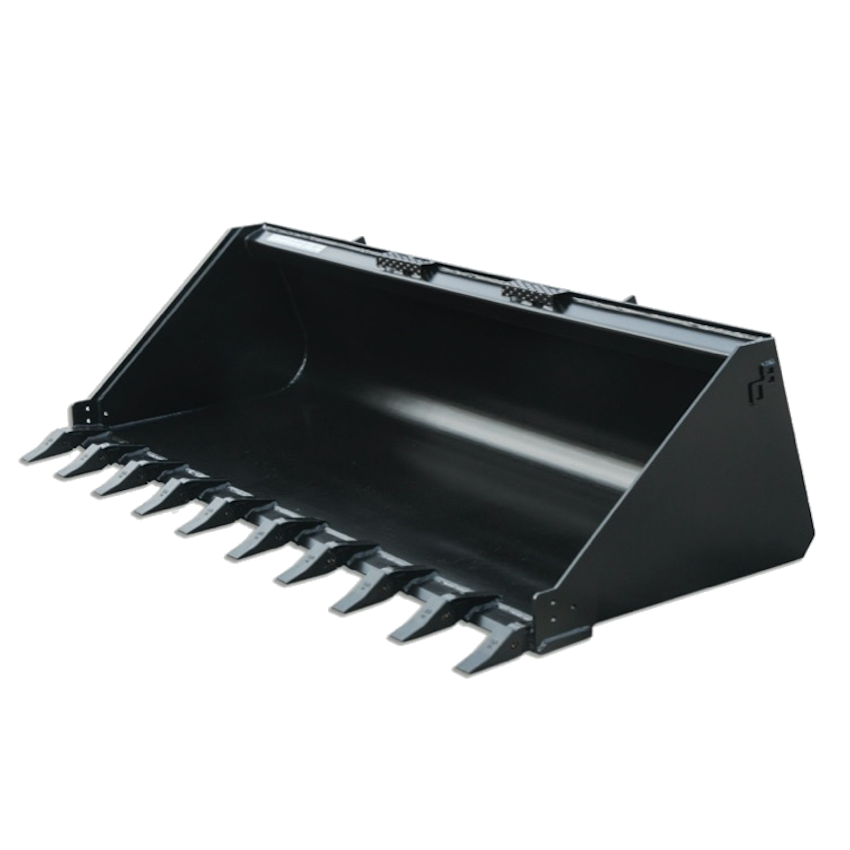

Blue Diamond Heavy Duty Utility Bucket

The Blue Diamond® Utility Bucket is very rugged. It offers more capacity than a standard low-profile bucket yet does not get as cumbersome as a high-capacity bucket. Designed for larger machines, it can handle the horsepower and not get overloaded as fast as some OEM buckets. The rolled back on the inside allows the bucket to clean out easier yet the rear heel still offers excellent backdragging and leveling capabilities

PART NUMBER MODEL CAPACITY WEIGHT
108960 72″ Smooth W/Bolt-On Edge 13.5 Cubic Ft. 632 lbs
108965 72″ Tooth 13.5 Cubic Ft. 621 lbs
108970 78″ Smooth W/Bolt-On Edge 14.58 Cubic Ft. 672 lbs
108975 78 Tooth 14.58 Cubic Ft. 656 lbs
108980 84″ Smooth W/Bolt-On Edge 15.66 Cubic ft. 716 lbs
108985 84″ Tooth 15.66 Cubic Ft. 701 lbs
108987 90″ Smooth W/Bolt-On Edge 16.74 Cubic Ft. 670 lbs



  • 1/4” material in the back and floor
  • Heavy top crossbar and boxed in bottom corner for strength
  • 22” tall and 34” deep
  • Smooth model includes a bolt-on edge
  • Rolled back for easy clean out
  • Increased capacity over low profile
  • Increased structure in damage prone areas
