Blue Diamond Low Profile Material

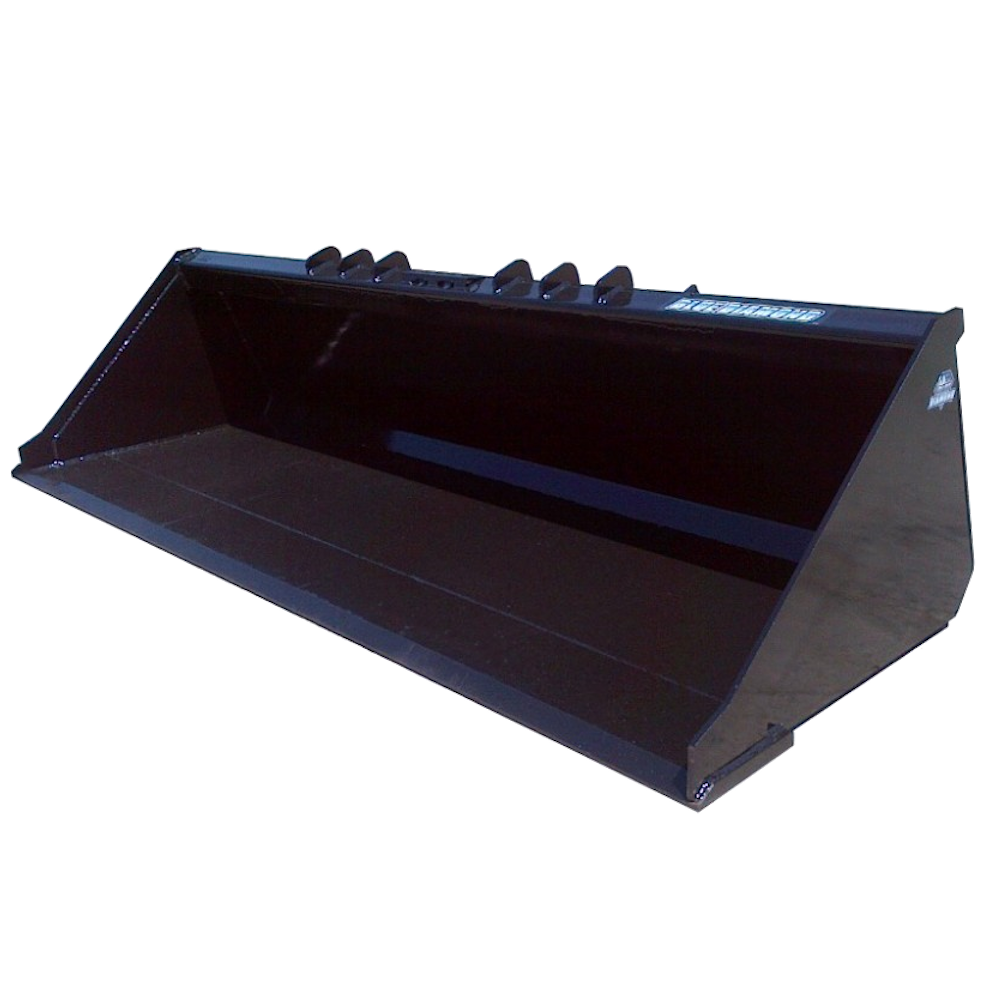

The Blue Diamond® Severe Duty Bucket is among the heaviest duty skid steer buckets on the market. It is available in 60”, 72”, 78”, 84”, or 90” widths, low profile, and/or, high capacity. It is constructed from heavy gauge steel consisting of a 1/2” bottom, double-layer 1/4” back, and a 1” x 8” cutting blade.

PART NUMBERMODELSTRUCK CAPACITYWEIGHT
10826066″ Low Profile, Severe Duty, Smooth11.4 cu ft650 lbs
10826366″ Low Profile, Severe Duty, Tooth11.4 cu ft675 lbs
10827072″ Low Profile, Severe Duty, Smooth11 cu ft710 lbs
10827372″ Low Profile, Severe Duty, Tooth11 cu ft724 lbs
10827578″ Low Profile, Severe Duty, Smooth12 cu ft690 lbs
10827778″ Low Profile, Severe Duty, Tooth12 cu ft757 lbs
10828084″ Low Profile, Severe Duty, Smooth12.9 cu ft738 lbs
10828284″ Low Profile, Severe Duty, Tooth12.9 cu ft813 lbs
10828390″ Low Profile, Severe Duty, Tooth18.8 cu ft925 lbs
10828472″ Low Profile, Severe Duty, Smooth-Long Bottom23 cu ft732 lbs
10828572″ Low Profile, Severe Duty, Tooth-Long Bottom23 cu ft774 lbs
10828678″ Low Profile, Severe Duty, Smooth-Long Bottom25 cu ft759 lbs
10828778″ Low Profile, Severe Duty, Tooth-Long Bottom25 cu ft826 lbs
10829084″ Low Profile, Severe Duty, Smooth-Long Bottom27 cu ft848 lbs
10829384″ Low Profile, Severe Duty, Tooth-Long Bottom27 cu ft965 lbs
10829690″ Low Profile, Severe Duty, Tooth-Long Bottom18.8 cu ft875 lbs



  • 1/2″ floor
  • Double layer 1/4″ back
  • Heavily gusseted quick attach
  • Tooth buckets use a 1″ x 8″ cutting edge
  • Available in low profile, long bottom, and high capacity
  • Low profile: 19” tall, 29” deep
  • Long bottom: 19” tall, 35” deep
