blue diamond severe duty high flow cold planer attachment

Blue Diamond Severe Duty

blue diamond cold planer - high flow attachment erskine standard duty pallet forks

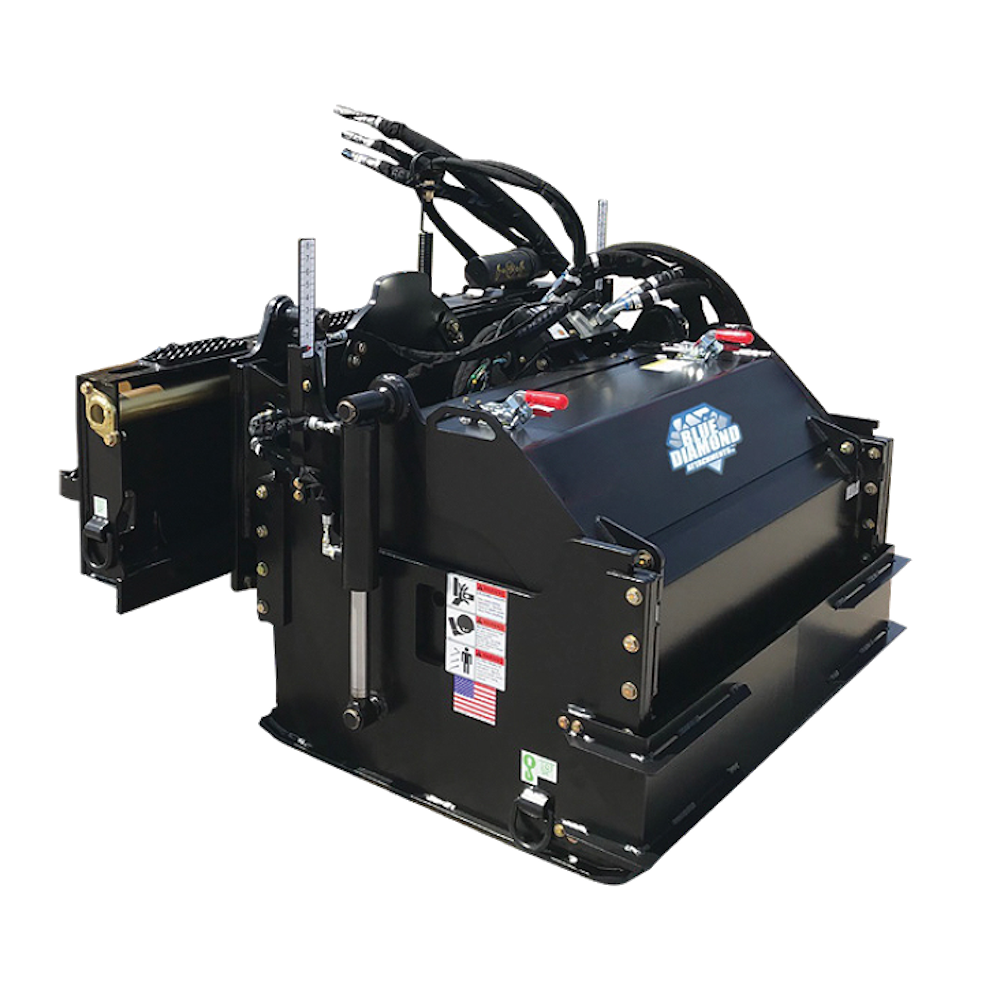

The Blue Diamond® Severe Duty High Flow Cold Planer uses the most trusted components in the industry, from the Sauer piston motor to the Fairfield planetary hub featured in the high-flow models, such as this one. These high-end components, combined with the highly engineered design, makes this one of the most reliable units available for a skid steer attachment.

Category:
PART NUMBER MODEL # OF TEETH MIN-MAX FLOW MIN-MAX PRESSURE WEIGHT
160810 18″ Severe Duty 46 24-45 GPM 2000-3500 PSI 1,990 lbs
160810-HP 18″ Severe Duty 46 30-45 GPM 3000-5000 PSI 2,050 lbs
160815 24″ Severe Duty 56 27-45 GPM 2000-3500 PSI 2,300 lbs
160815-HP 24″ Severe Duty 56 30-45 GPM 3000-5000 PSI 2,300 lbs
160820 30″ Severe Duty 66 30-45 GPM 2000-3500 PSI 2,770 lbs
160820-HP 30″ Severe Duty 66 30-45 GPM 3000-5000 PSI 2,550 lbs
160825 40″ Severe Duty 76 30-45 GPM 3000-5000 PSI 2,975 lbs
160825-HP 40″ Severe Duty 76 30-45 GPM 3000-5000 PSI 3,000 lbs
160830-HP 40″ Severe Duty 106 30-45 GPM 3250-5000 PSI 3,200 lbs
  • Hydraulic adjustment controls
  • Hydraulic side shift
  • High-torque, planetary drive
  • High drum weight = less vibration
  • 1 1/2″ thick drum tube
  • Easy access tooth replacement
  • Water kit available
  • Fine-cut drum available
  • Hard facing & stand-off blocks
  • Up to 8″ cutting depth
