Digga’s drilling drives for skid steer loaders are the ultimate in performance, quality and cost-effectiveness. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors and input housing, the innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions, eliminating downtime and minimises maintenance, optimising your returns.

Digga drilling drives are backed by an industry-leading warranty and local factory support.

Features

Compact Digga manufactured gearbox,
Digga designed Eaton motor,
2 Piece shaft design ensures maximum side load ratings without increasing load on bearings,
Lifetime shaft pull out warranty,
5-year gearbox and 3-year motor warranty,
Over 30 years of design and manufacturing experience.

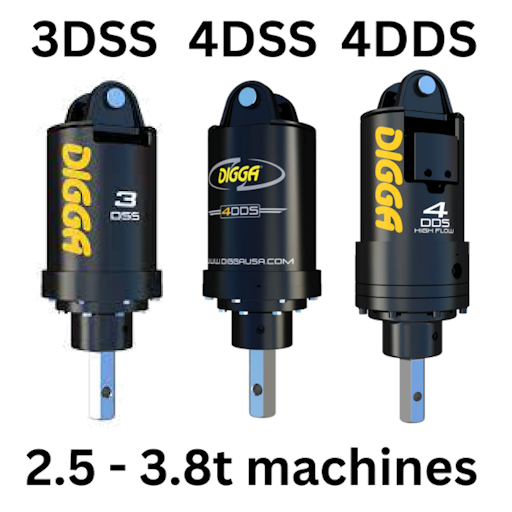

Drilling Drive Specifications

DESCRIPTION	3DSS	4DSS	4DDS
TORQUE (FT-LBS @ 3000 PSI	2,829	3,275	3,583
MAX TORQUE FT-LBS @ 3500 PSI	3,300	3,821	4,180
RECOMMENDED FLOW (GPM)	10-30	10-30	10-36
MOTOR TYPE	EATON	EATON	EATON
MAX PRESSURE – DO NOT EXCEED	3500 PSI @ 16 GPM		3500 PSI @ 27 GPM
MAX FLOW – DO NOT EXCEED	30 GPM @ 1800 PSI		42 GPM @ 3100 PSI
MAX HORSE POWER	34	34	55
PRESSURE RELIEF VALVE	N/A	N/A	INCLUDED
STANDARD OUTPUT SHAFT	2″ HEX	2″ HEX	2″ HEX

RECOMMENDED AUGER	A4 / RC4	A4 / RC4	A4 / RC4
MAX DRILLING DIAMETER (CLAY / SHALE)*	24″	24″	24″
MAX DRILLING DIAMETER (EARTH)*	30″	30″	40″
WEIGHT (LBS)	123	125	180
OVERALL LENGTH (IN)	25.9″	25.9″	29″
DIAMETER (IN)	9.4″	9.4″	9.4″
