Mini Power Angle Broom

Erskine Mini Power Angle Broom

Blue Diamond Mini Pickup Broom Erskine Mini Pick-Up Broom

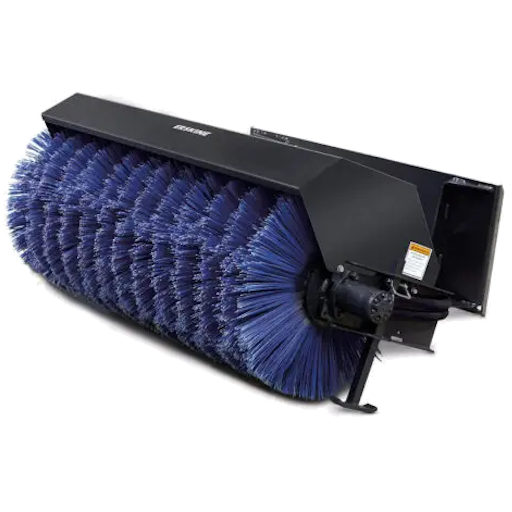

The Mini Power Angle Broom is designed for heavy-duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your mini skid steer. Featuring a 48” width and optional hydraulic angle change, this attachment is designed to go anywhere to get the job done!

Categories: , ,
Model Power Angle Broom Mini Power Angle Broom Mini
Working Width 48” 60″
Working Width @ 25° Angle 43.5” 54.4″
Overall Width 58.5” 70.4″
Maximum Angle (both ways) 25° 25°
Bristle Diameter 24” 24”
Rated Flow 7-17 GPM 7-17 GPM
Operating psi 2,000 – 3,000 psi 2,000 – 3,000 psi
Weight 325 lb. 385 lb.
Mounting Kit Configurations ASV/Terex (RC/PT30) ASV/Terex (RC/PT30)
Bobcat (MT-52/55, 463/S70) Bobcat (MT-52/55, 463/S70)
Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi
Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow) Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow)
  • Direct-drive design
  • Power angling (optional)
  • Angles 25° to the right and left
  • Storage stands come standard
