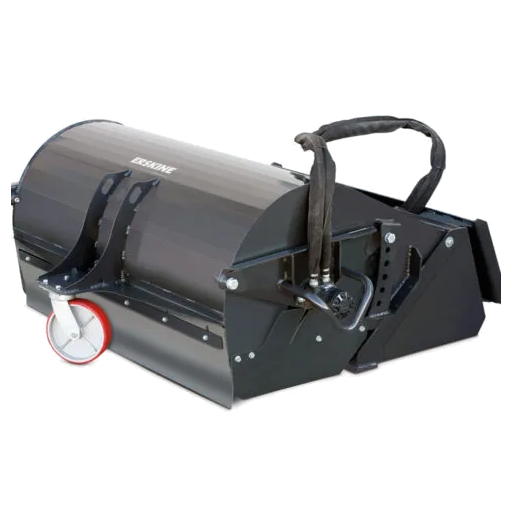

Erskine Mini Pickup Broom

Sweep clean and scrape mud going forward or in reverse. Ideal for construction, industrial or municipal jobs, the Mini Pick-Up Broom is easy to attach and simple to operate. Replaceable cutting edge helps remove caked-on mud, while the sweeper’s poly bristles deposit dirt and debris in the container, which can be dumped when full.

Model Pick-up Broom Mini
Working Width 45”
Overall Width 57”
Overall Height 25”
Bristle Diameter 24”
Cutting Edge Specs 1/2” x 4” bolt-on
Drive System Direct-drive Hydraulic Motor
Rated Flow 7-15 GPM
Operating psi 2,000 – 3,000 psi
Weight 440 lb.
Mounting Kit Configurations ASV/Terex (RC/PT30)
Bobcat (MT-52/55, 463/S70
Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi
Universal Mounting Plate (up to 1,000 lb. ROC and within rated flow)
  • Direct-drive design
  • Adjustable arbor allows control over bristle pressure to surface while extending bristle life
  • Replaceable cutting edge
  • Completely covered to control dust. Ideal for warehouses, machines sheds, parking lots, job sites, etc. where dust containment is a must!
  • Reversible bristle direction for sweeping backwards
