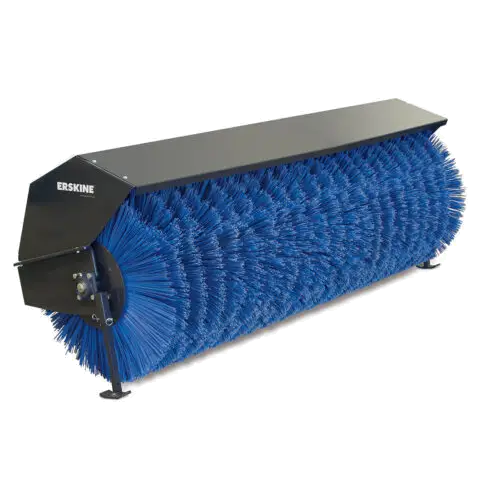

Erskine Power Angle Broom

The Power Angle Broom is designed for heavy-duty sweeping of dirt, snow, and other unwanted material. It quickly mounts to your skid steer or tractor loader. Featuring a 68”, 84” or 96” width, optional hydraulic angle change, and the exclusive Floating Torsion Suspension System™.

Model 680 / 680X / 680XL 840 / 840X / 840XL 960 / 960X / 960XL
Width 68” 84” 96”
Width Fully Angled 63” @ 25° 77” @ 25° 89” @ 25°
Broom Angling Manual 25° / Hyd 25° / Hyd 25° Manual 25° / Hyd 25° / Hyd 25° Manual 25° / Hyd 25° / Hyd 25°
Drive System Hydraulic Motor Direct-Drive Hydraulic Motor Direct-Drive Hydraulic Motor Direct-Drive
Skid Steer Flow Range 13-24 GPM 13-24 GPM 13-24 GPM
Wafer Diameter 32” 32” 32”
Wafer Sections (number) 33 zig-zag 40 zig-zag 48 zig-zag
Mounting Plate Universal Universal Universal
Shipping Weight 790 lb. 850 lb. 910 lb.
Operating Weight 715 lb. 775 lb. 835 lb.
Reversible Valve Block Included w/XL model Included w/XL model Included w/XL model
  • Exclusive Torsion Float Suspension assists the operator in keeping consistent and correct bristle down pressure, reducing excessive wear on the bristles.
  • Fast wafer change time
  • 25° right and left angle (manual or optional hydraulic)
  • Greasable bearings for longer wear life
  • Hydraulic drive motor (no chains)
