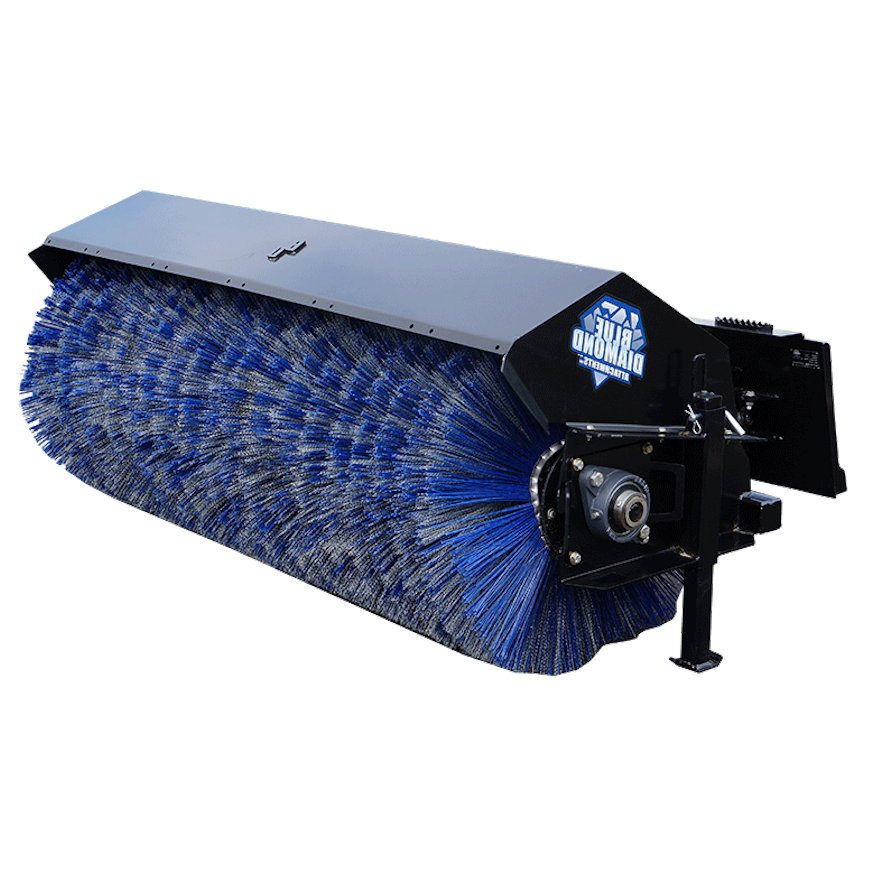

Blue Diamond Series 2 Severe Duty Angle Broom

blue diamond series 2 angle broom skid steer attachment erskine power angle broom skid steer attachment

The Blue Diamond® Severe Duty Series 2 Angle Broom is a brutal attachment for the serious user. From front to back, it has been engineered for daily use in tough conditions. Everywhere you look on this broom, you will see quality and ingenuity. Available with manual or hydraulic angle.

Categories: , ,
PART NUMBER MODEL ANGLE WIDTH WEIGHT
116408 60″ Manual Angle 48.7″ 995 lbs
116413 72″ Manual Angle 59.2″ 1,125 lbs
116418 84″ Manual Angle 69.3″ 1,300 lbs
116423 96″ Manual Angle 79.7″ 1,450 lbs
116410 60″ Hydraulic Angle 48.7″ 805 lbs
116415 72″ Hydraulic Angle 59.2″ 944 lbs
116420 84″ Hydraulic Angle 69.3″ 987 lbs
116425 96″ Hydraulic Angle 79.7″ 995 lbs
  • Hydraulic angle and bristle operate simultaneously
  • Oversized main shaft spindles
  • Massive bearings
  • Bi-directional motor
  • Welded heavy duty cylinder
  • Grease fittings on pivot points
  • 32” bristles with poly or poly steel available
  • 14 pin OEM connector available
  • Water kit available
  • Pivot angle of 30 degrees
