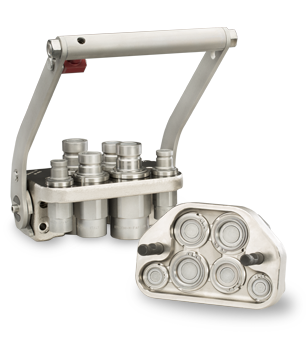

The GR Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two to ten hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same nominal coupler diameter and different media or different size couplers. A dust cap is supplied, and options include an electrical connector for low voltage requirements and a parking station.

  • Allows the simultaneous connection and disconnection of up to 10 hydraulic and/or electrical lines,
  • Simple single movement requiring minimal force to connect or disconnect,
  • Auto-lock design prevents accidental disconnection,
  • Circuit lines can have the same or different size couplers or media,
  • Ideal for applications requiring leak-free connections, connecting with residual pressure, or when crossing connections causes damage or downtime.
FEATURES
  • Size range: 3/8” thru 1 1/4”,
  • Port options: NPTSAEBSP,
  • Connect/disconnect up to 25 MPa/300 bar/3625 psi residual pressure,
  • Simple to use, with single motion connection,
  • Auto-lock design prevents accidental disconnection,
  • Min. of 2 to max. of 10 lines of different nominal size couplers or the same size diameter and different media.
APPLICATIONS
  • Any application requiring leak-free connections with or without residual pressure of multiple couplings,
  • Harvesters, front-end loaders, snow removal, construction machinery, mining, drilling machinery,
  • Refrigeration equipment.
Body Size1/4″3/8″1/2″5/8″3/4″1″1 1/4″
Port OptionsBSPNPTSAE
Port Size1/4″3/8″1/2″5/8″3/4″1″1 1/4″
MaterialCarbon
Valve StyleFlat Face
Working PressureUp to 5000
