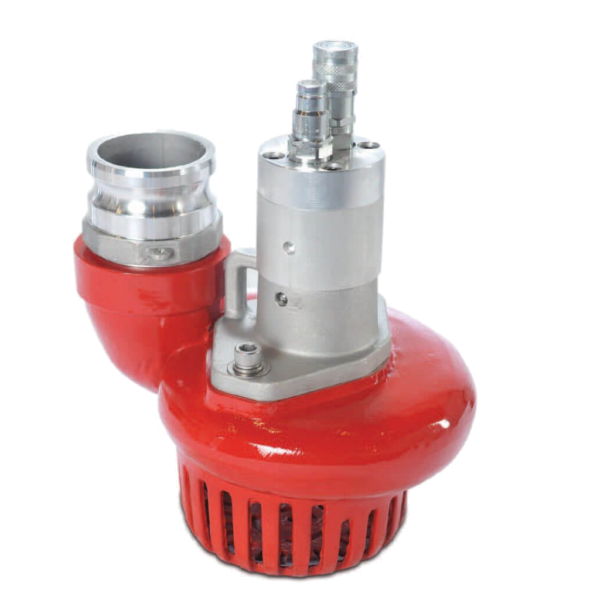

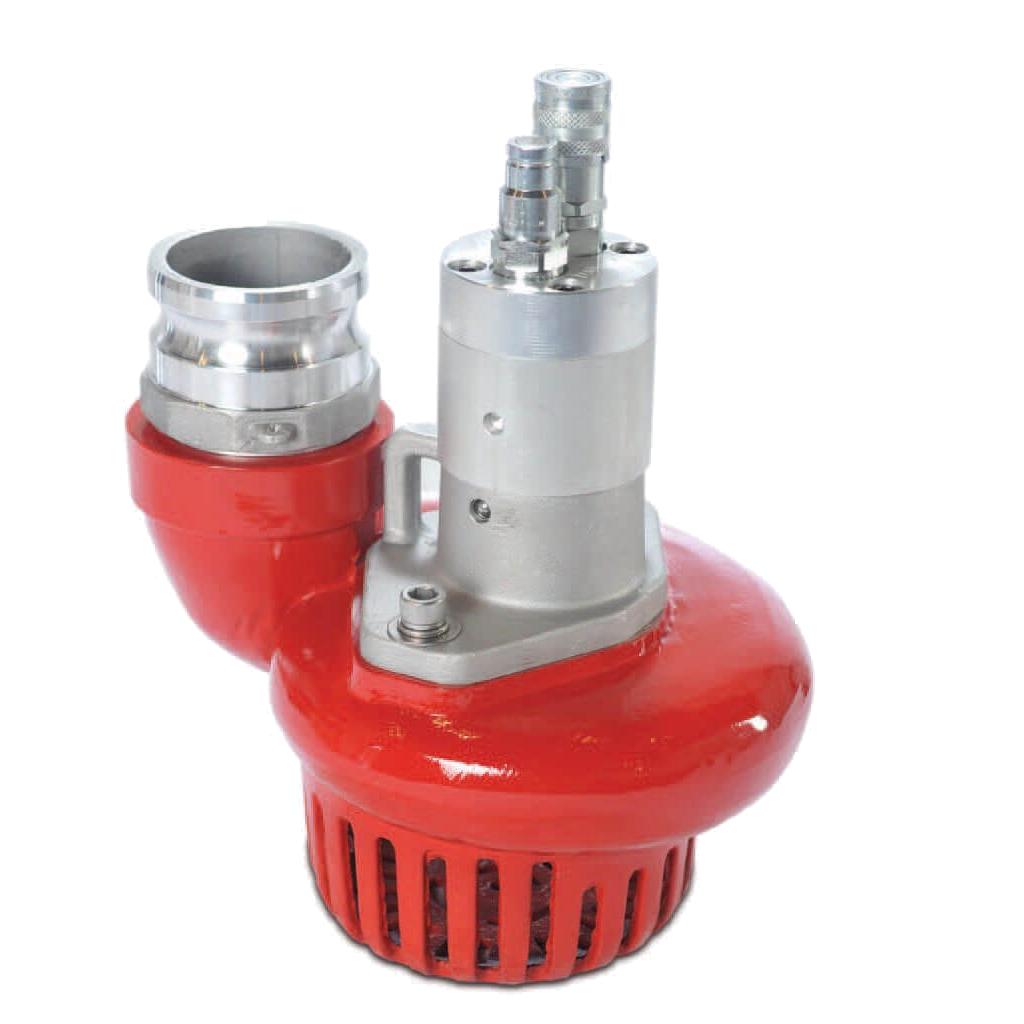

HDI – SP30 3″ Discharge Submersible Water Pump

The SP30 compact submersible hydraulic pump is a light-weight, efficient way to move large volumes of liquids quickly. This submersible centrifugal design requires no priming and can run dry all day without damage.

hdi submersible pump hydraulic new quality salestop view submersible hydraulic pumps winnipeg manitoba thompson brandon winkler

The SP30 compact submersible hydraulic pump is a light-weight, efficient way to move large volumes of liquids quickly.

This submersible centrifugal design requires no priming and can run dry all day without damage. Direct drive requires no maintenance as all moving parts are self-lubricated with passing hydraulic fluid. A semi-closed designed stainless steel impeller will not corrode and will draw down water to a depth of only 3 inches. The SP30 is fitted with flush face coupler that threads directly into SAE ports, No NPT hydraulic joints to weep. The SP30 Water Pump comes with a 3” female NPT output port fitted with a 3” Cam Loc fitting standard.

[tab title=”Specifications” icon=”cog”]

PUMPING CAPACITY500 gpm (1893 lpm)
PUMP TYPEWater
CONSTRUCTIONAluminum Body/Stainless Impeller
DISCHARGE3” Cam Loc – 3” NPT Female
WEIGHT21 lbs. (9.5 kg)
LENGTH12 inches (305 mm)
WIDTH10 inches (254 mm)
HEIGHT12 inches (305 mm)
HYDRAULIC FLOW RANGE7-11 gpm (26-42 lpm)
MAXIMUM PRESSURE2000 psi (138 bar)
MAXIMUM BACK PRESSURE250 psi (17 bar)
