Blue Diamond Series 2 Pickup Broom

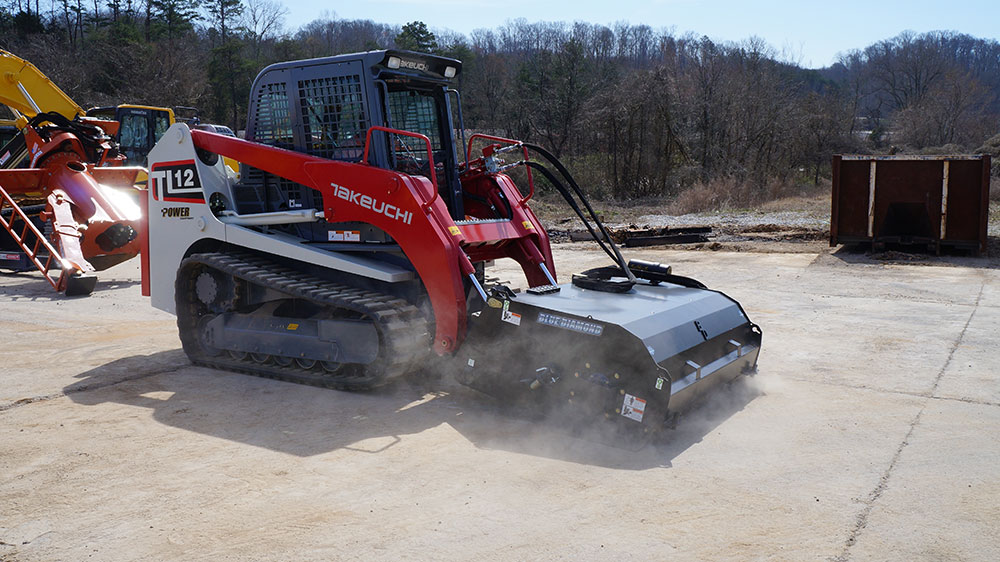

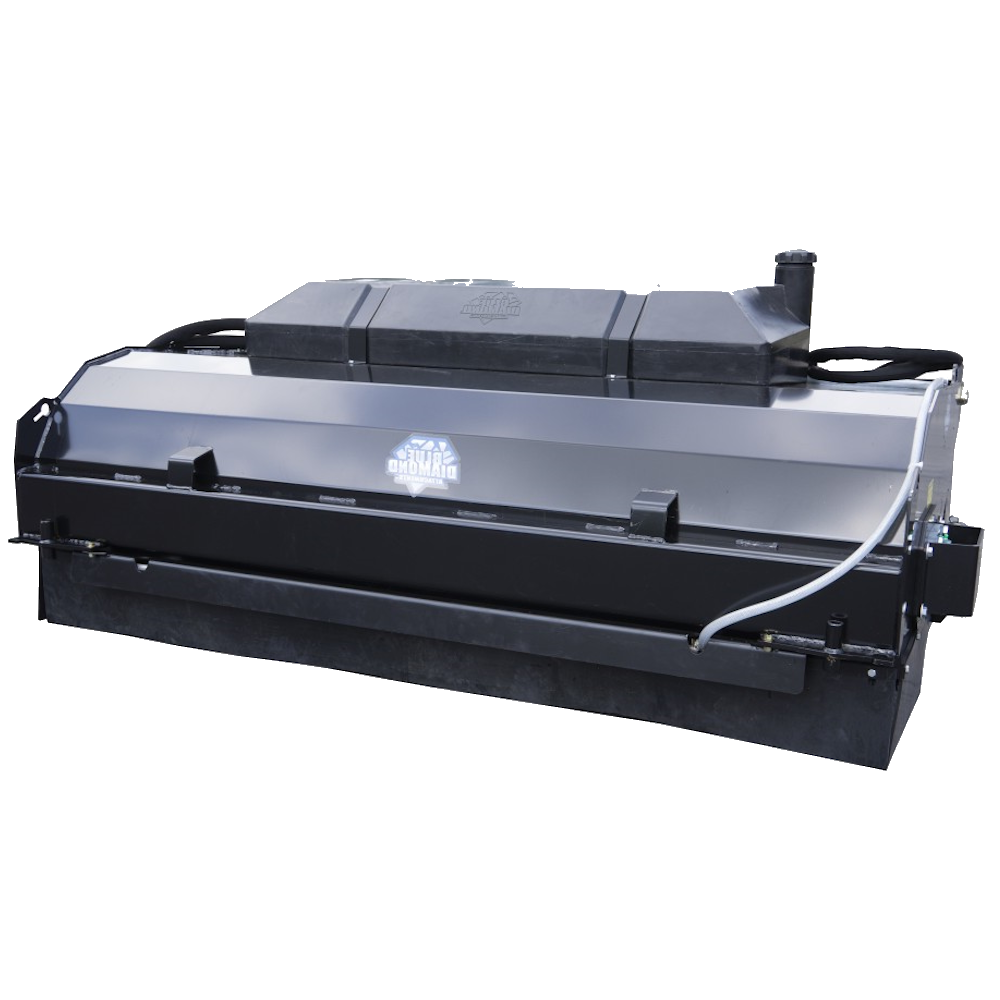

The Blue Diamond® Skid Steer Series 2 Pickup Broom is designed for heavy commercial use. This simple, clean design gives added structure to typical wear areas and damage-prone components such as an optional built-in water kit and heavy reinforcement on the front of the broom shroud. The low profile water tank allows the operator better visibility of the work area thereby reducing accidents.

PART NUMBER SIZE WEIGHT WIRE/POLY WAFERS TOTAL WAFERS WATER RUN TIME FLOW RANGE
116512 60″ 995 lbs 15 wire / 16 poly 31 58 minutes 15-25 GPM
116517 72″ 1,390 lbs 18 wire / 19 poly 37 40 minutes 15-25 GPM
116522 84″ 1,585 lbs 21 wire / 22 poly 43 38 minutes 15-25 GPM
116527 96″ 1,765 lbs 24 wire / 25 poly 49 33 minutes 15-25 GPM
116555 (Optional Gutter Brush) 128 lbs
  • Heavy 2″ main shaft
  • 7″ tall front crash bar
  • Motor and shaft guards
  • Heavy duty dump stops
  • Grease fittings on all pivot points and bearings
  • Steps mounted on back of bucket for entering and exiting the host machine
  • 1 1/2″ x 7″ Zinc height adjustment pins with 4 positions
  • Bolt-on rubber skirting to contain debris
  • Predrilled for optional pressurized water system
  • Optional 37 gallon low profile pressurized water system kit
